SPECIFICATIONS

Application 1: Led Light Lamp Switch, Home Security Alarm System Home Appliances

Application 2: Taking Care for the elderly, children

Application 3: Light, Fan, Door, LED, Lamps, Security Alarm System and so on

Application location: Family, Farm, Factory, Office, Supermarkets and so on

Feature 1: Wireless Light Switch

Feature 2: 433MHz Remote Control

Feature 3: Smart Lighting Switch

Brand Name: kebidumei

Model Number: Wireless Light Switch

Wireless Communication: RF

Use: Universal

Use: Lighting

Use: SWITCH

Channel: 3

Frequency: 433 MHz

Origin: Mainland China

Support APP: No

Choice: yes

semi_Choice: yes

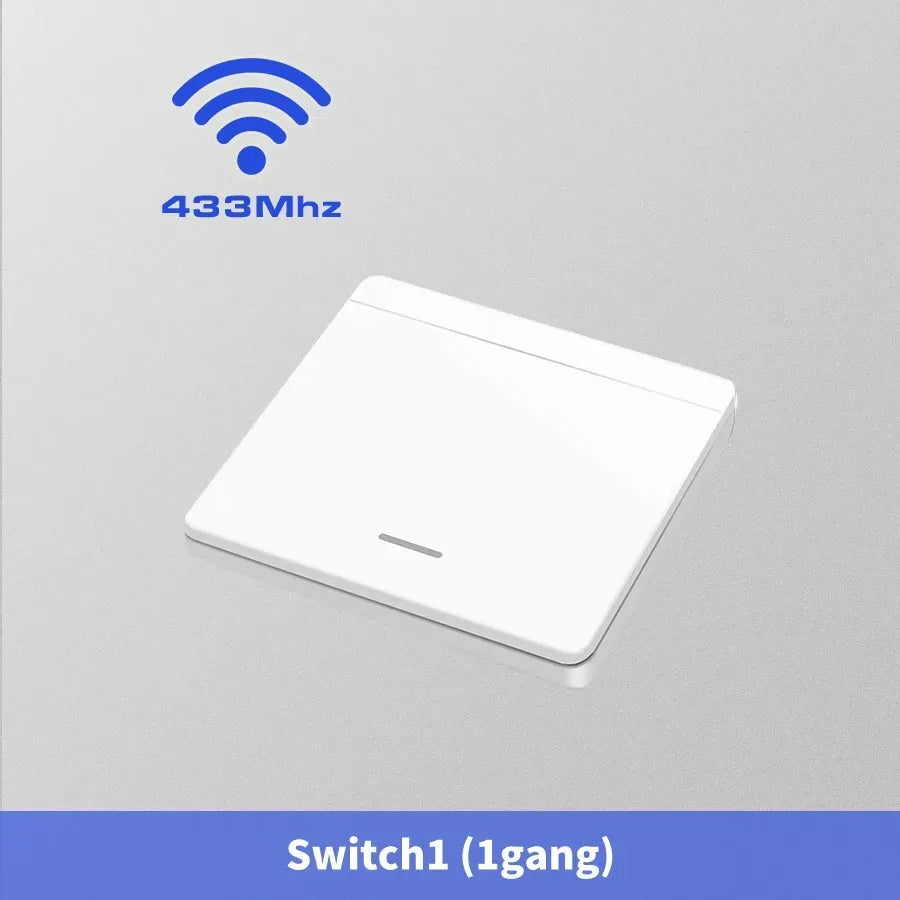

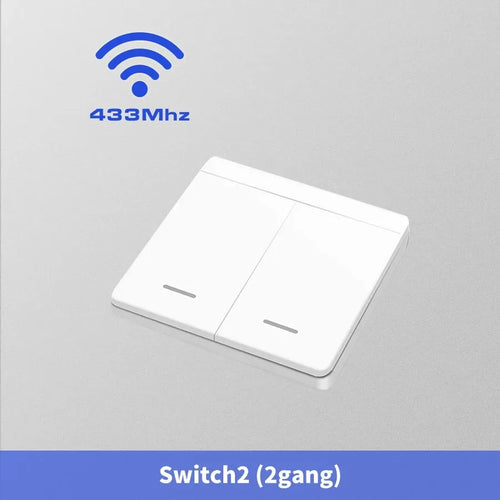

Product name:Wireless Wall Switch
working frequency:433MHZ
Power consumption in standby mode:<luA
Transmitter power:<10mW
Working way:Wireless control
Coding way:EV1527 learning code
Modulation:ASK
Working temperature:-10"C~+70*C
Size:86*86*15mm

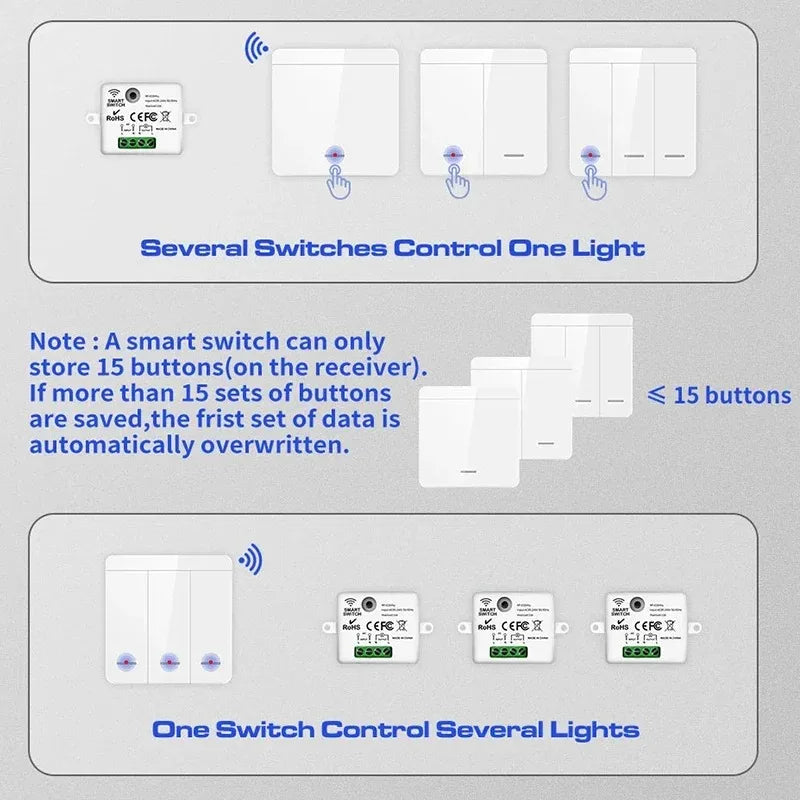

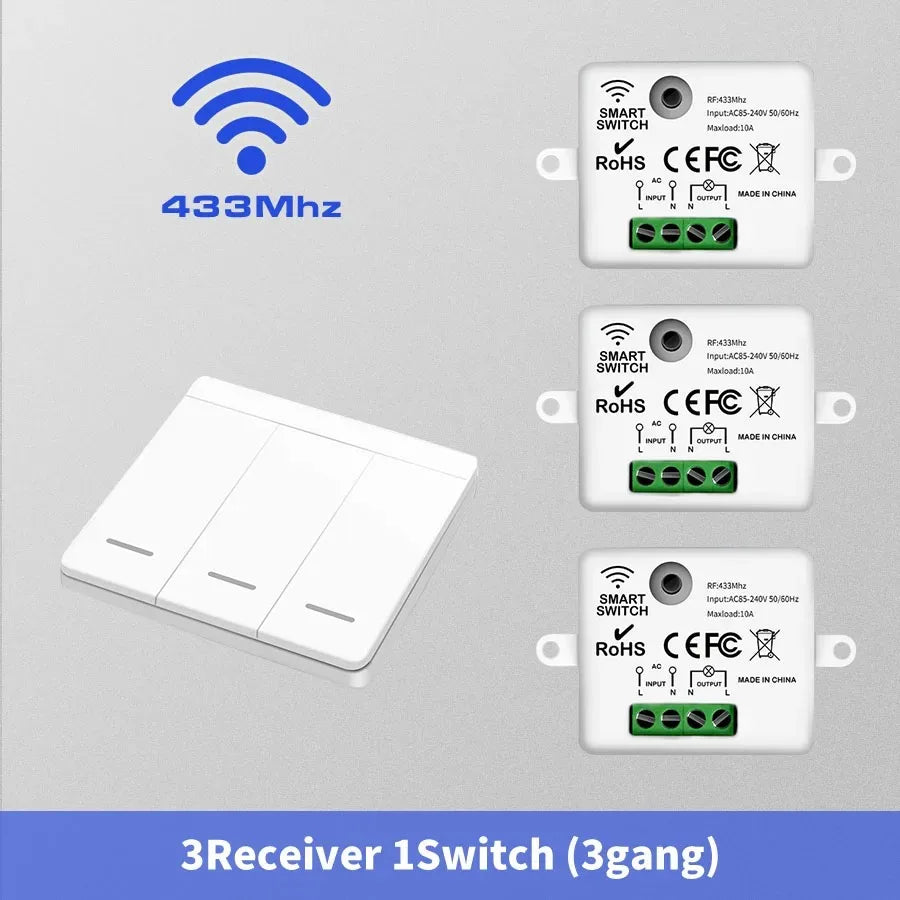

- Multi switches can control different receivers.Save energy,avoid darkness.

- Working with all kinds of Lights and Ceiling Fan.LED,CFL,Fluorescent lamp can load 300W,other can load 2500w.

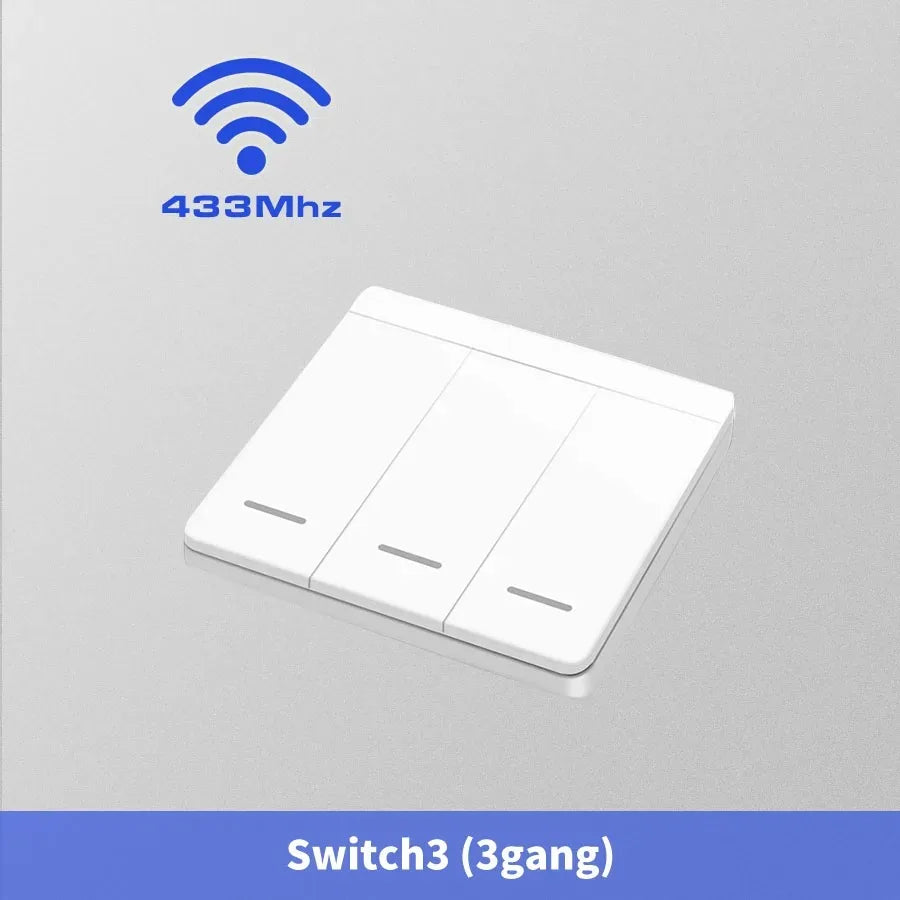

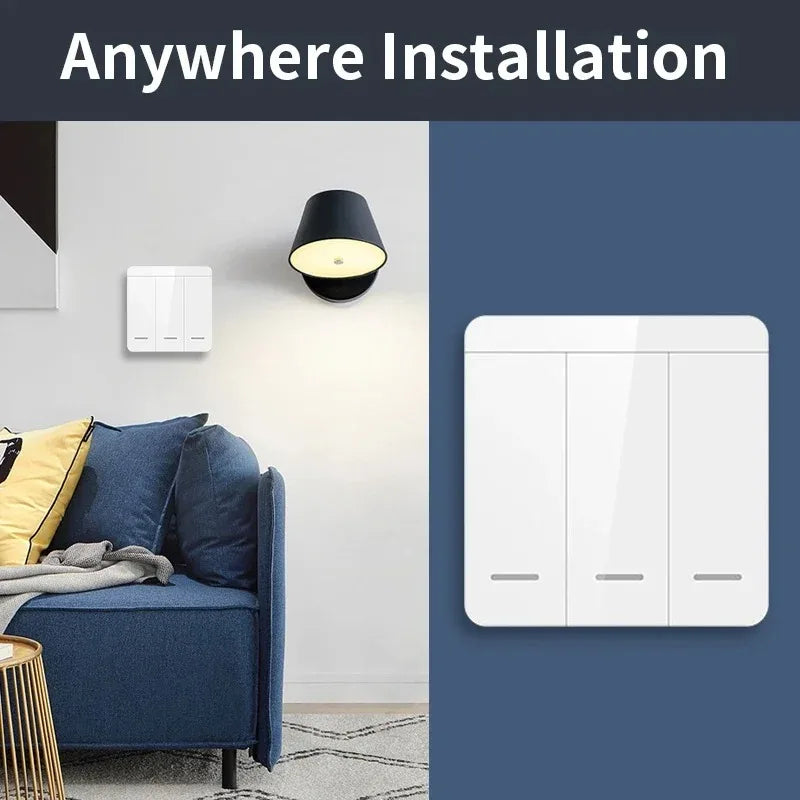

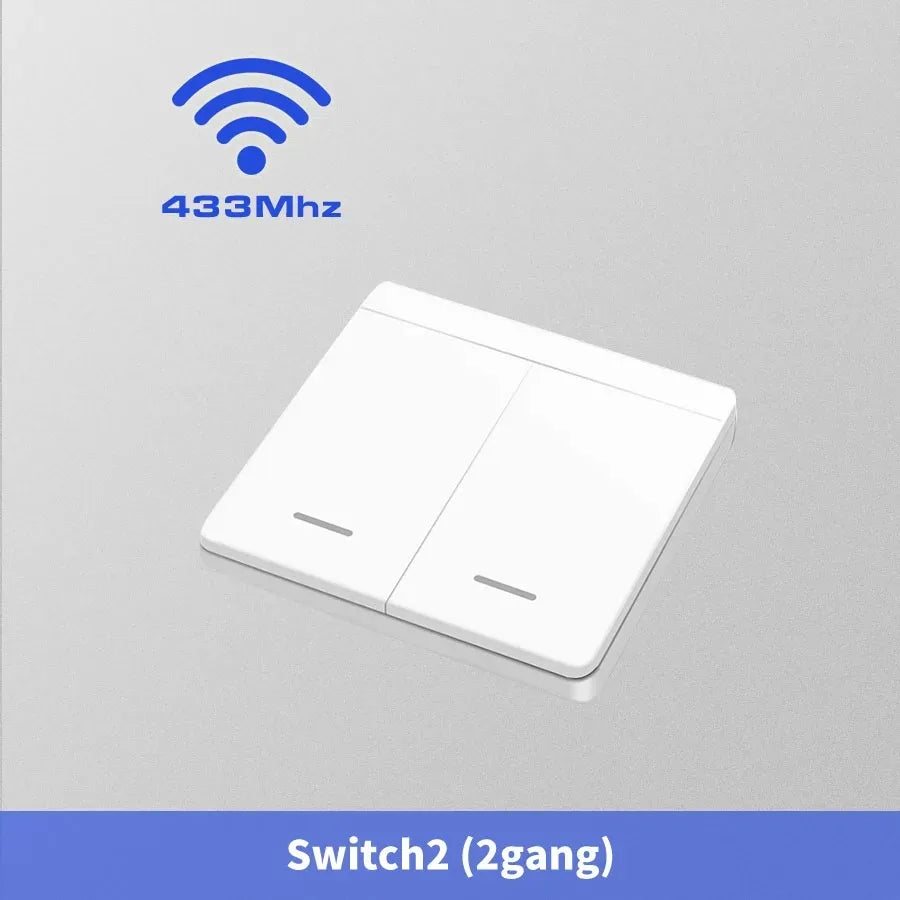

- It is a 86 wall panel that can be stuck onto anywhere. It is a learning code transmitter EV1527 IC Chip. It can be learned into most of the learning code receiver.

Note : A smart switch can only store 15 buttons(on the receiver).
If more than 15 sets of buttons are saved,the frist set of data is automatically overwritten.

Pairing Method

How to get the signal
Step 1: Press the learning button(on the Receiver) twice. Wait for 3 seconds;
Step 2: Press one button on the remote control. Wait for 3 seconds. Succeed.
How to clear the signal

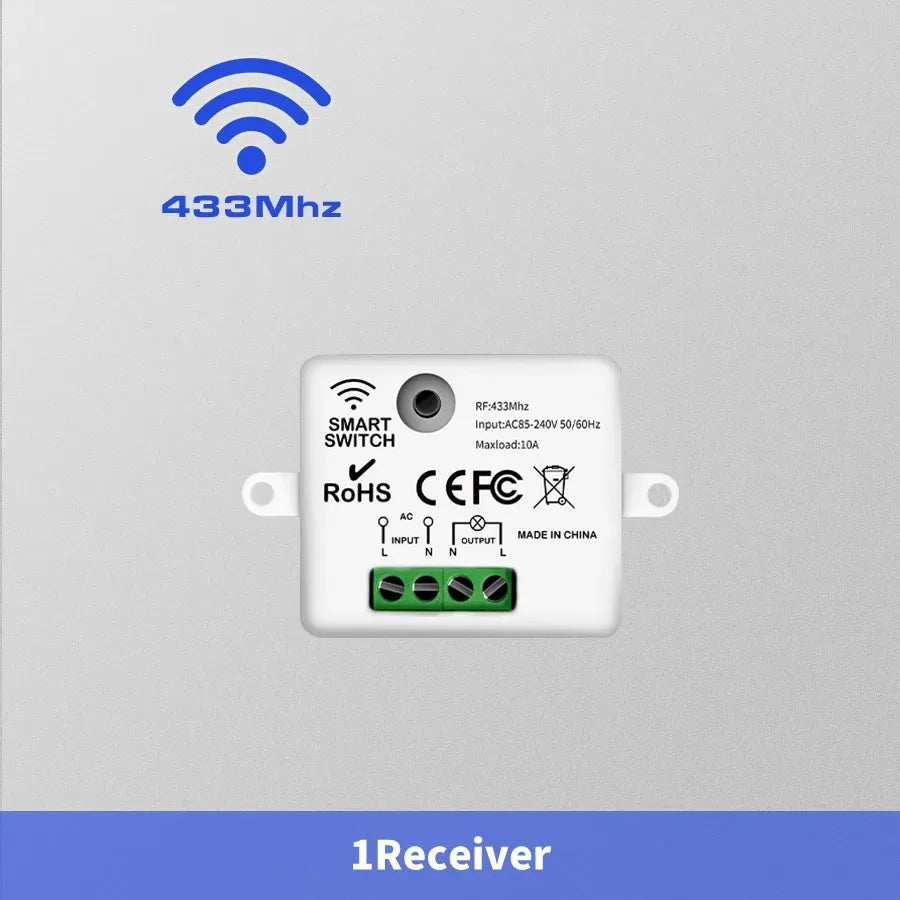

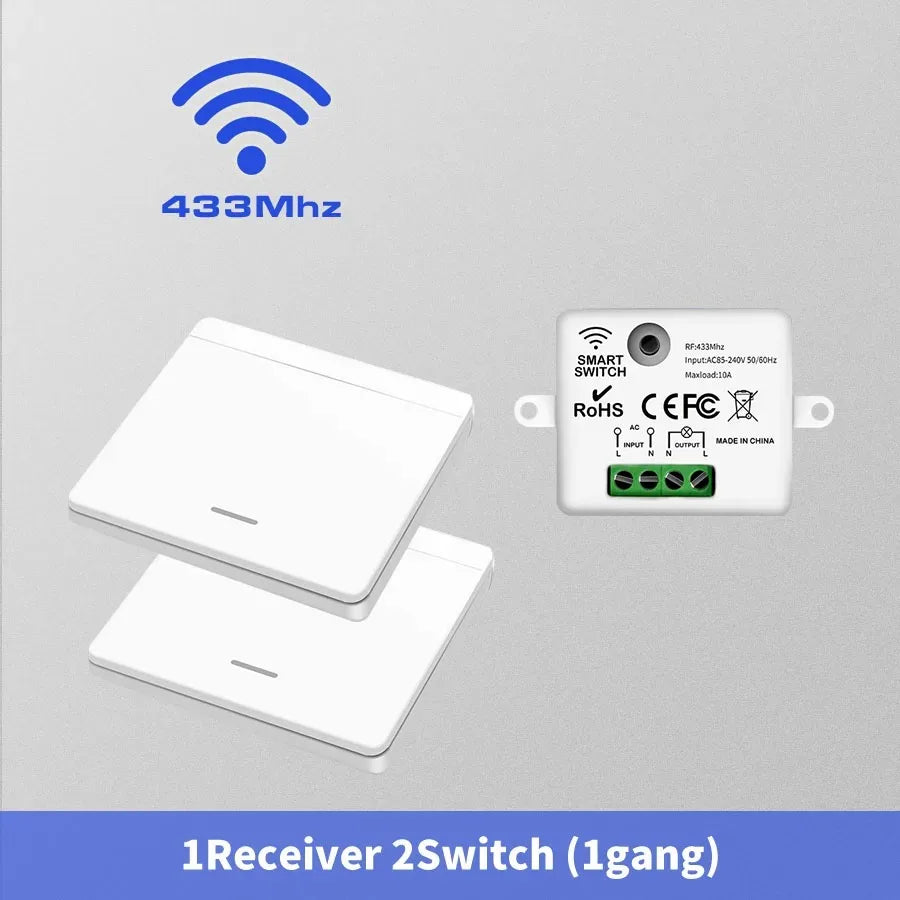

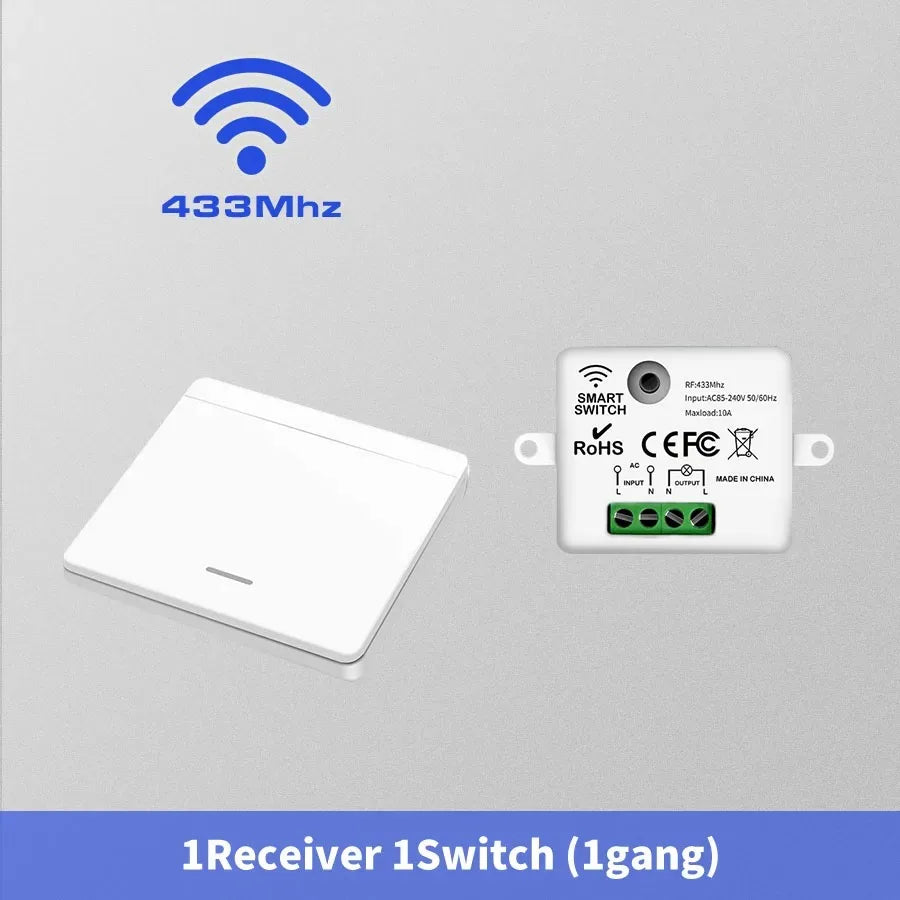

Only one step :Press the learning button(on the Receiver) 8 times. Wait for 3 seconds;controller (Receiver)

1) Working voltage: AC85-240V 60HZ/50HZ

2) Working frequency: 433MHZ

3) Power consumption in standby mode: <0.3W

4) Load power: <1100W

5) Receiving sensitivity: -108dBM

6) Working way:wireless control

7) Coding way: learning code

8) Modulation: ASK

9) Working temperature: -10*C~+70"C

10) Size: 47.4*42*22.8 (mm)
