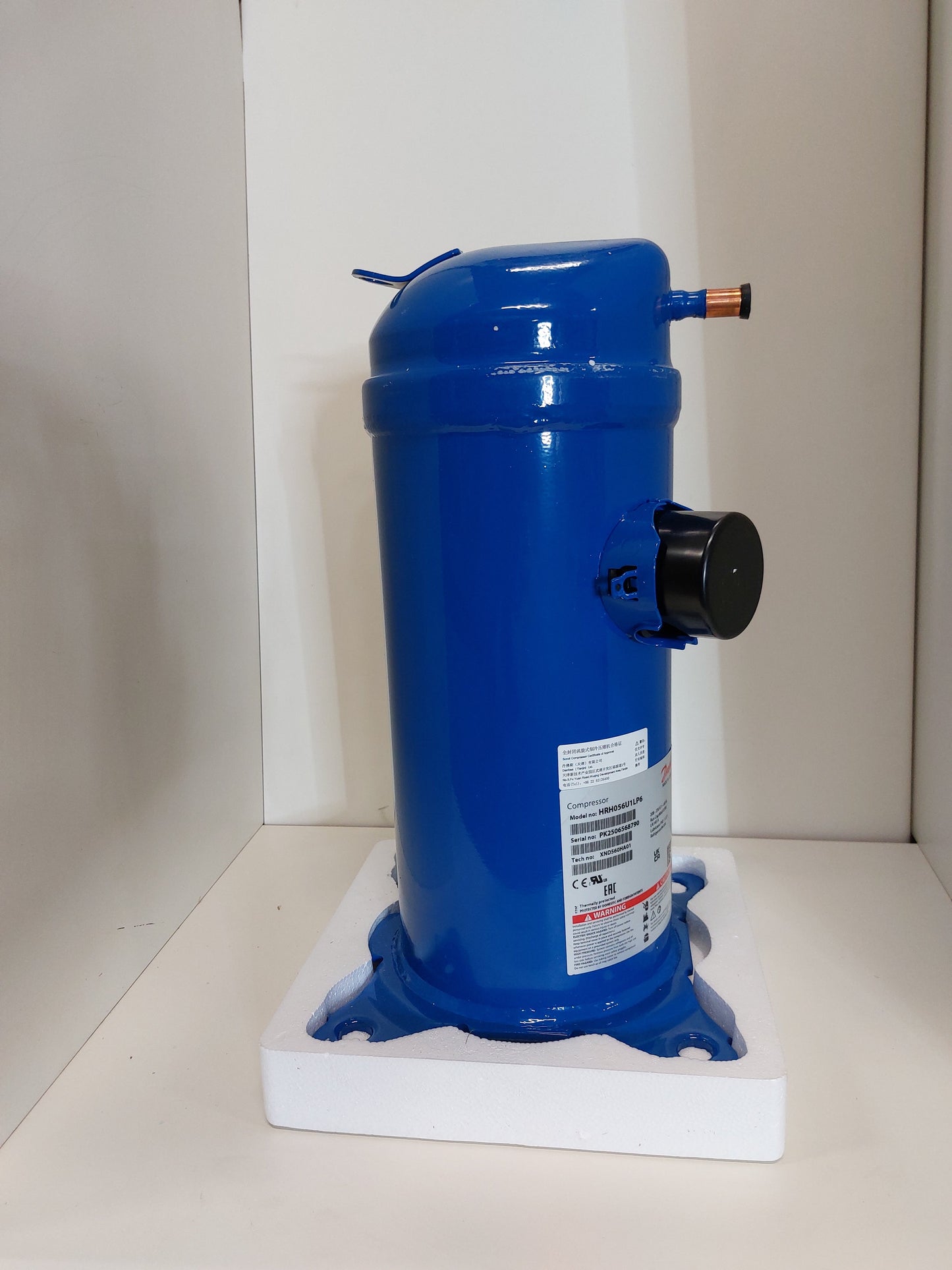

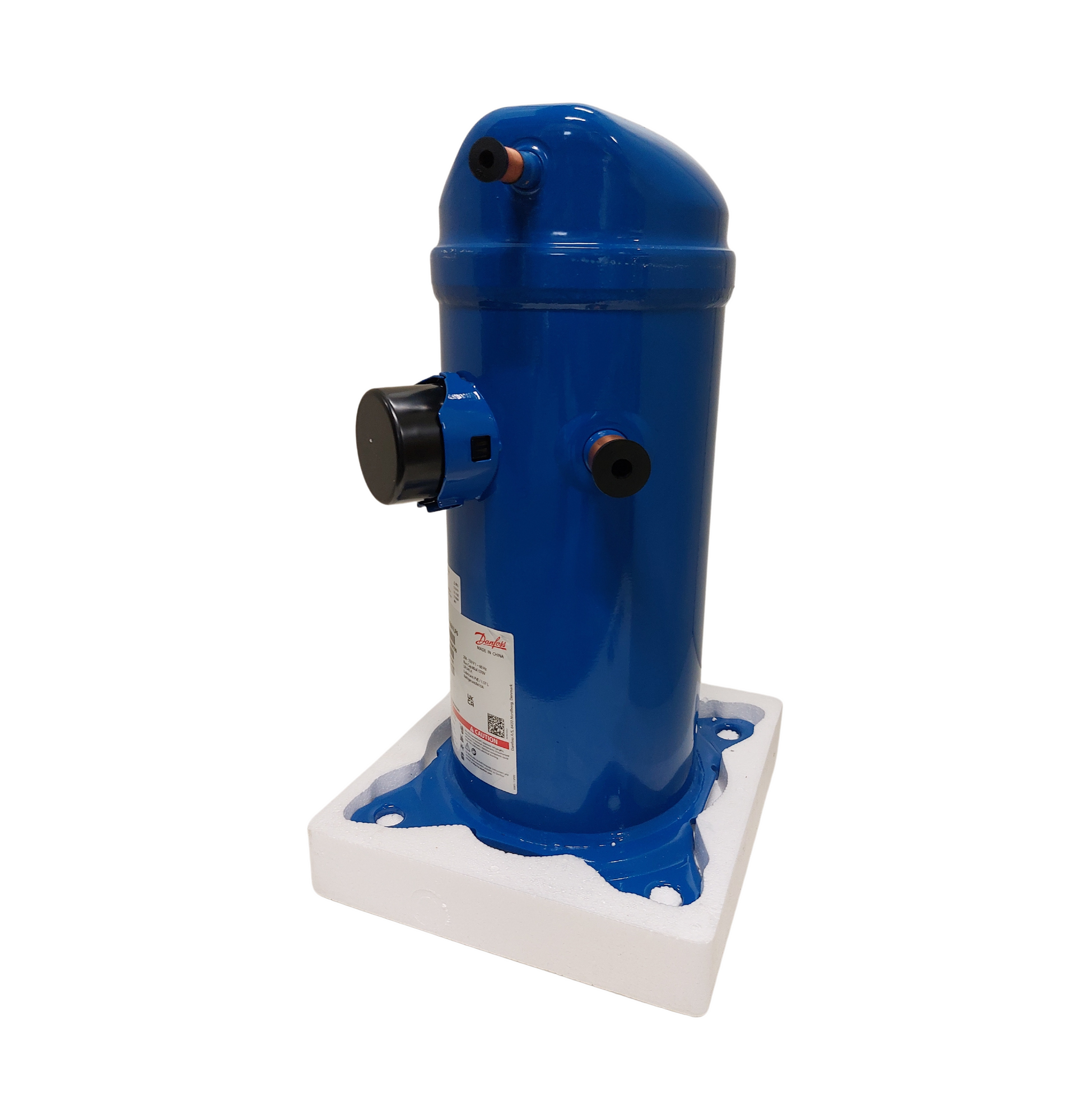

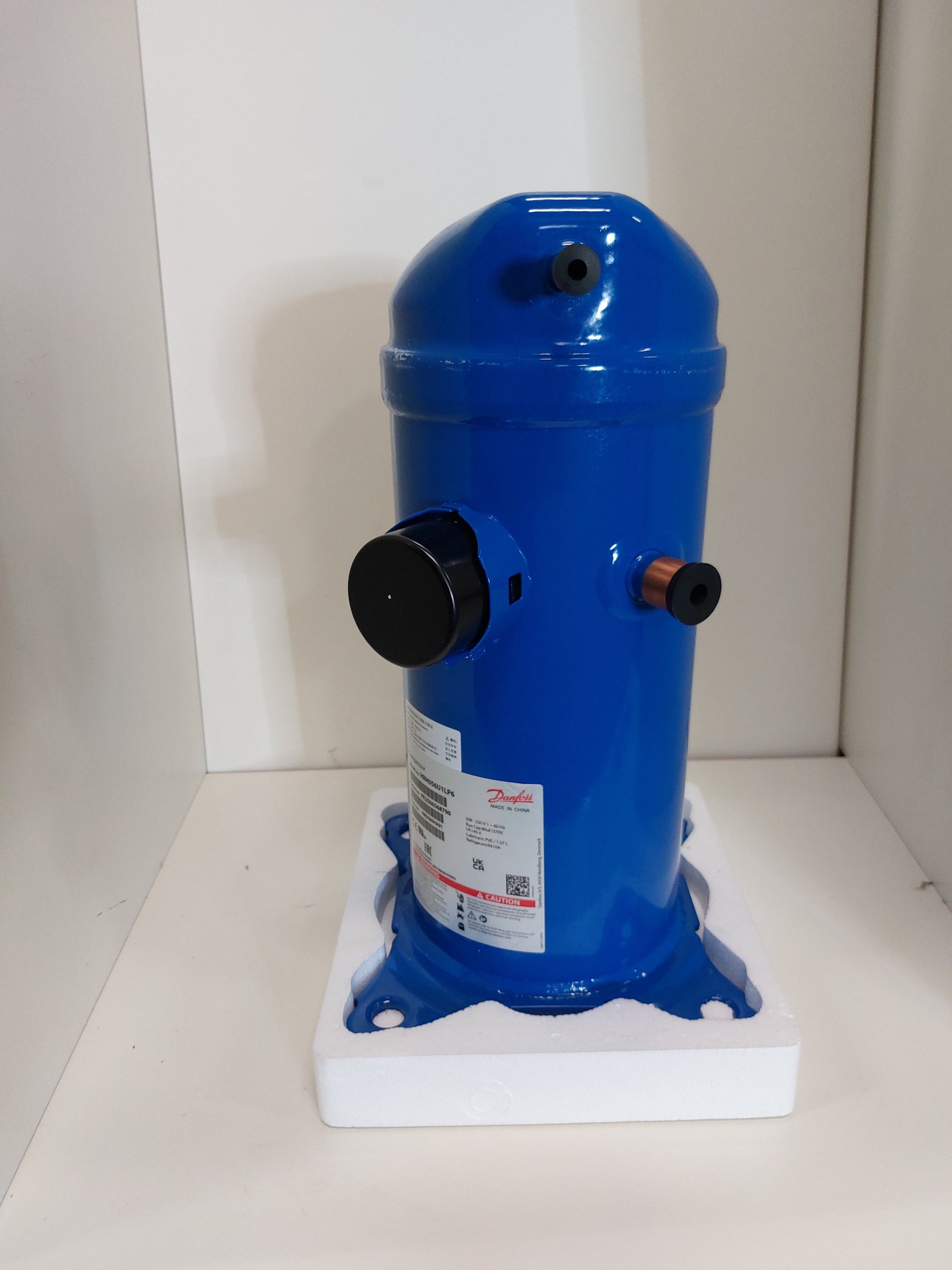

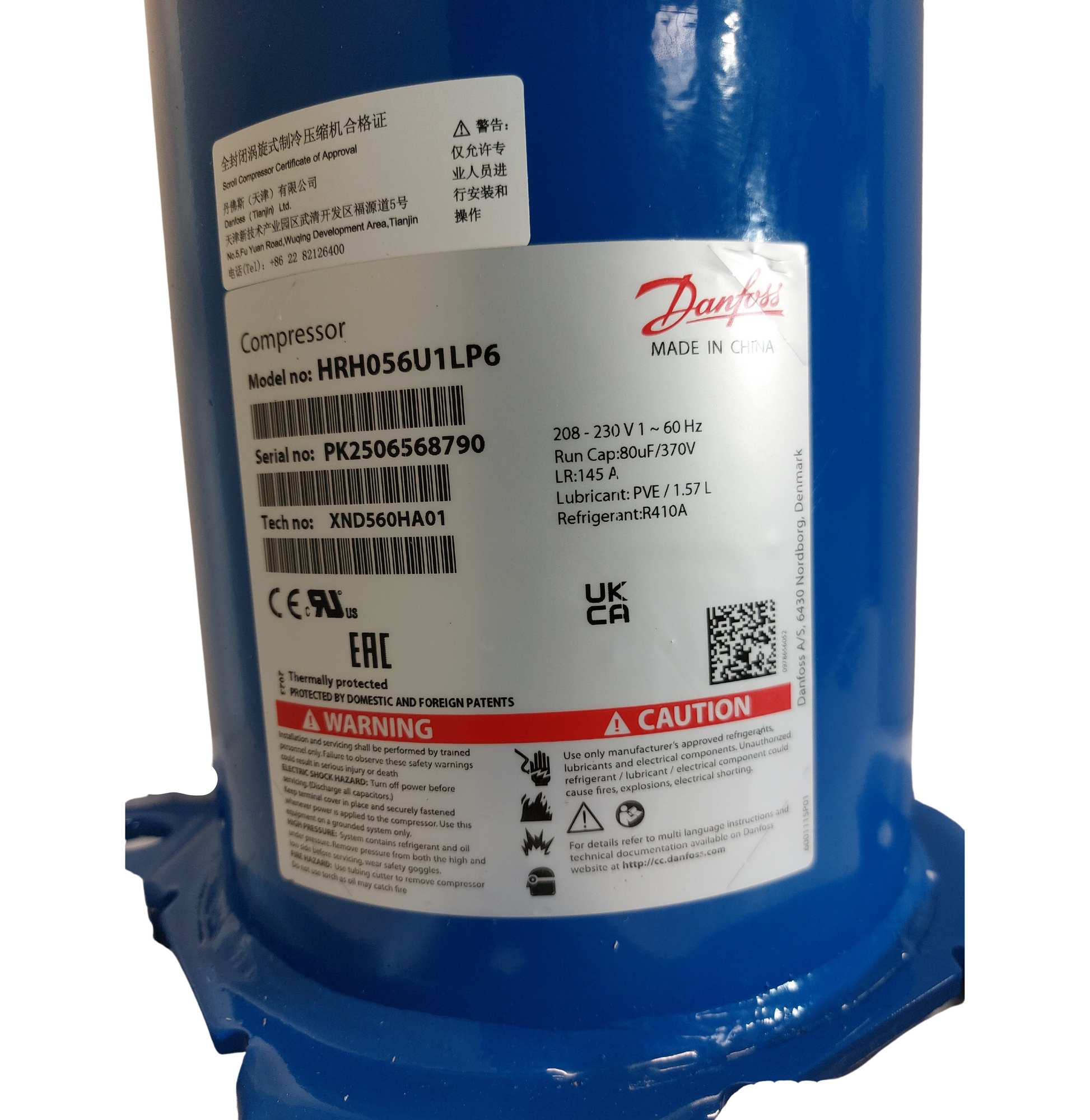

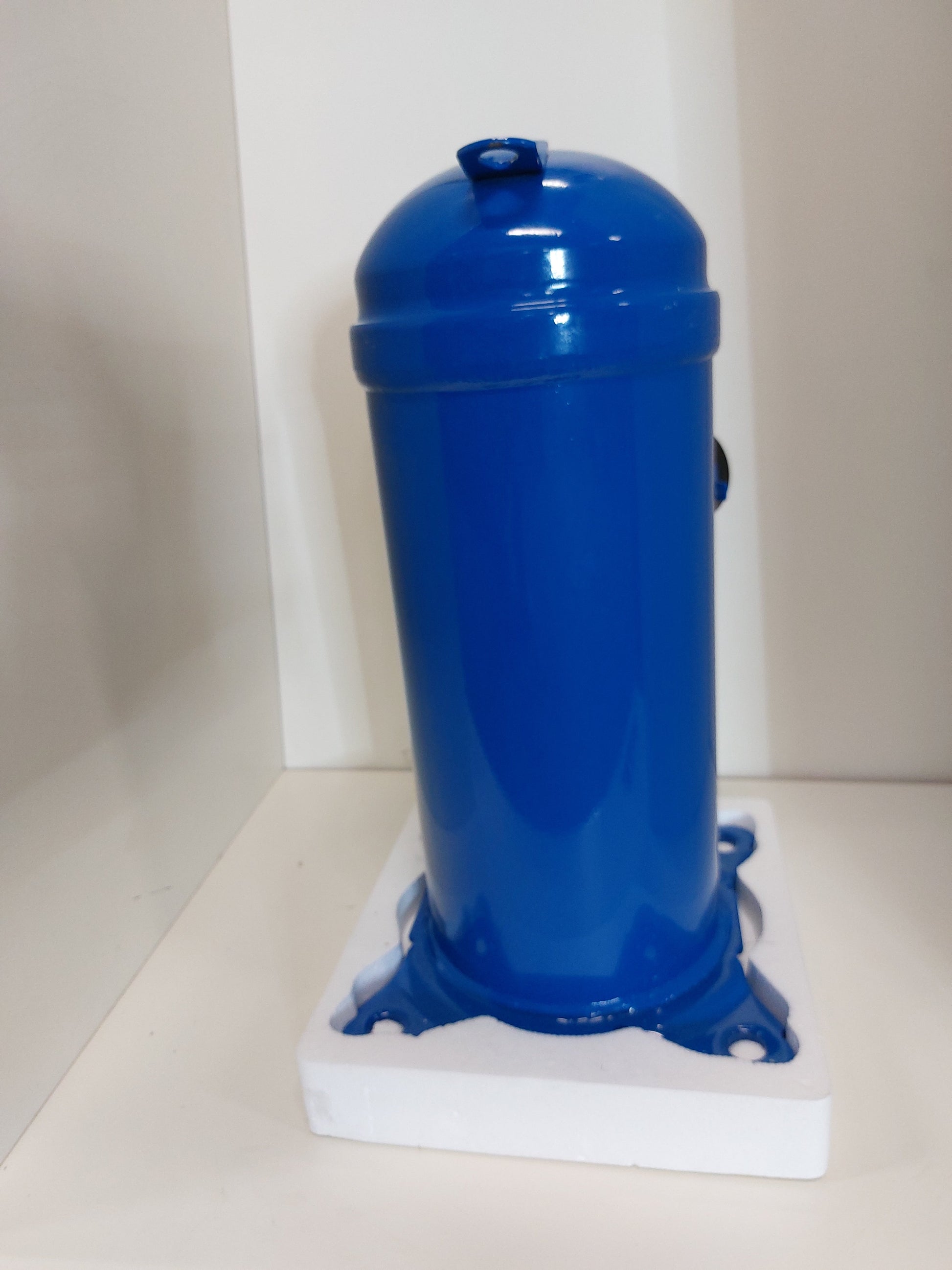

Danfoss HRH056U1LP6 Scroll Compressor

Product Details:

• Weight:
  • Net: 97 lbs
  • Gross: 97 lbs

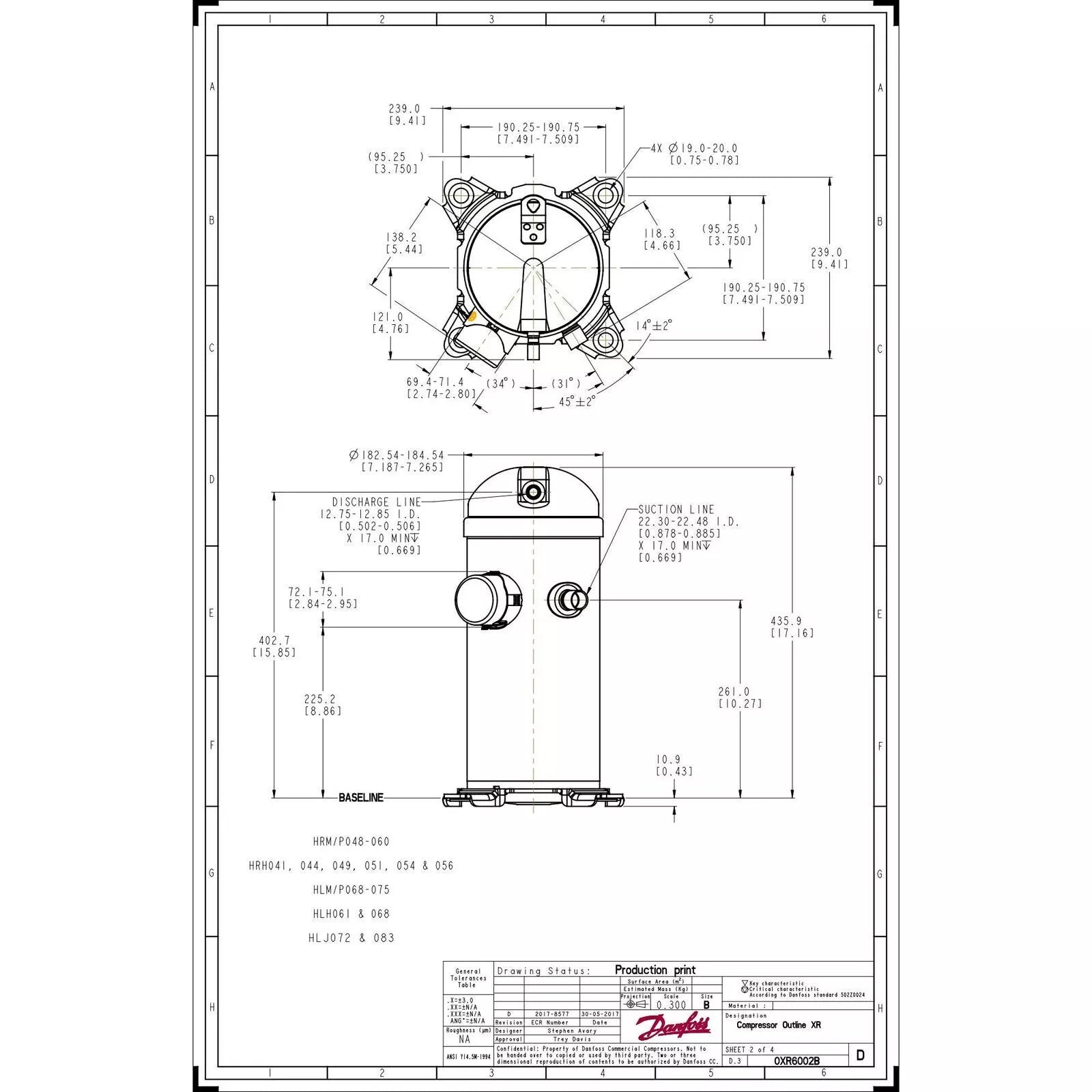

• Size:
  • Width: 9.4 inches
  • Length: 9.4 inches
  • Total Height: 17.9 inches
• Refrigerant: R410A
• Voltage: 208-230V, 60Hz
• Compressor Type: Scroll
• Capacity:
  • Fixed speed
  • Swept volume: 54.08 cubic centimeters
• Capacitors:
  • A: 80 microfarads
  • B: 189-227 microfarads
• Pressure:
  • Max PS:
    • High side: 46.1 bar
    • Low side: 31.1 bar
• Motor:
  • Phase: 1
  • LRA: 145 A
  • Protection: Internal overload protector
• RoHS Compliance: EU RoHS with exemptions

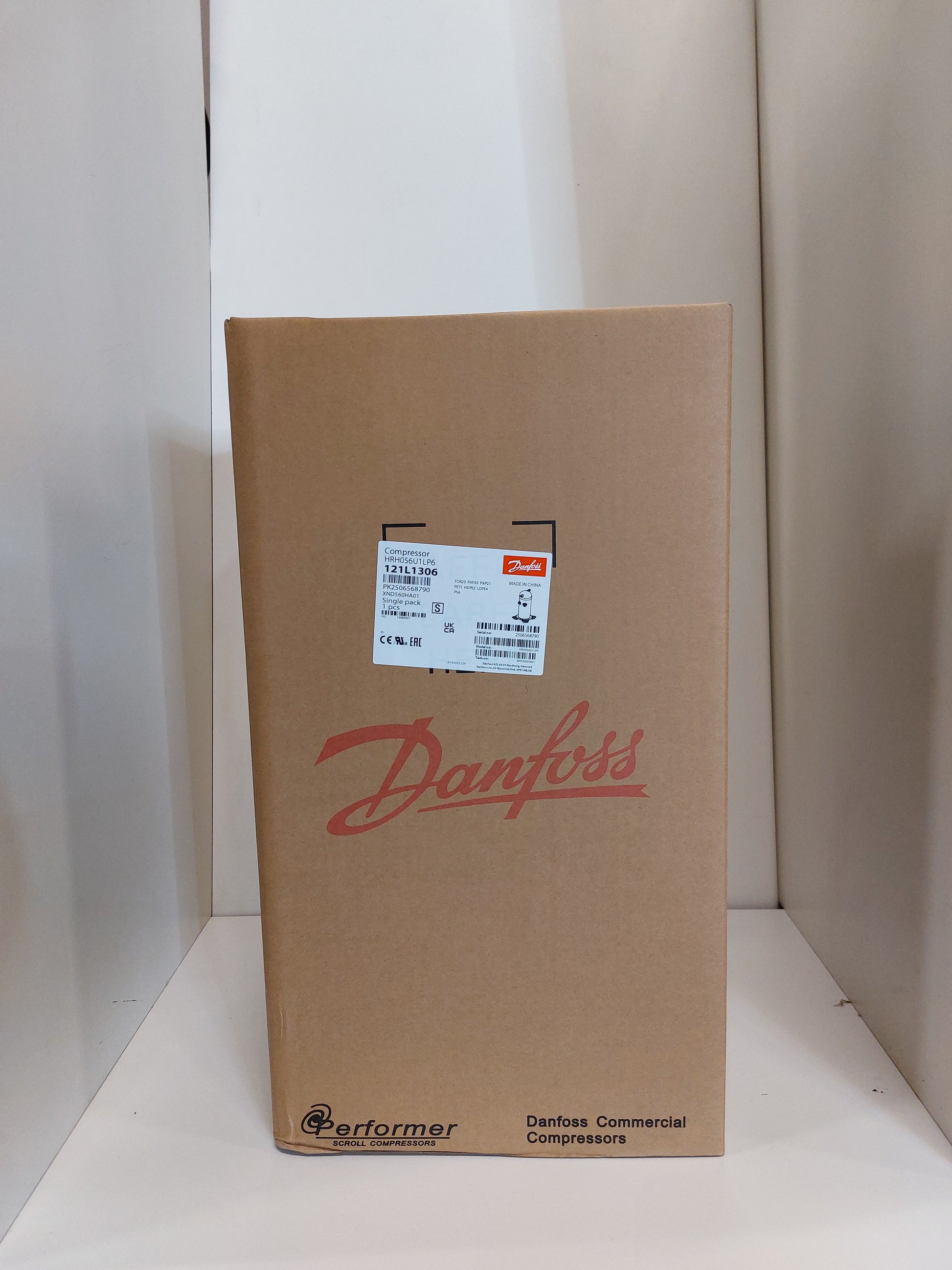

• Packing: Single pack
• Accessories:
  • Installation instructions

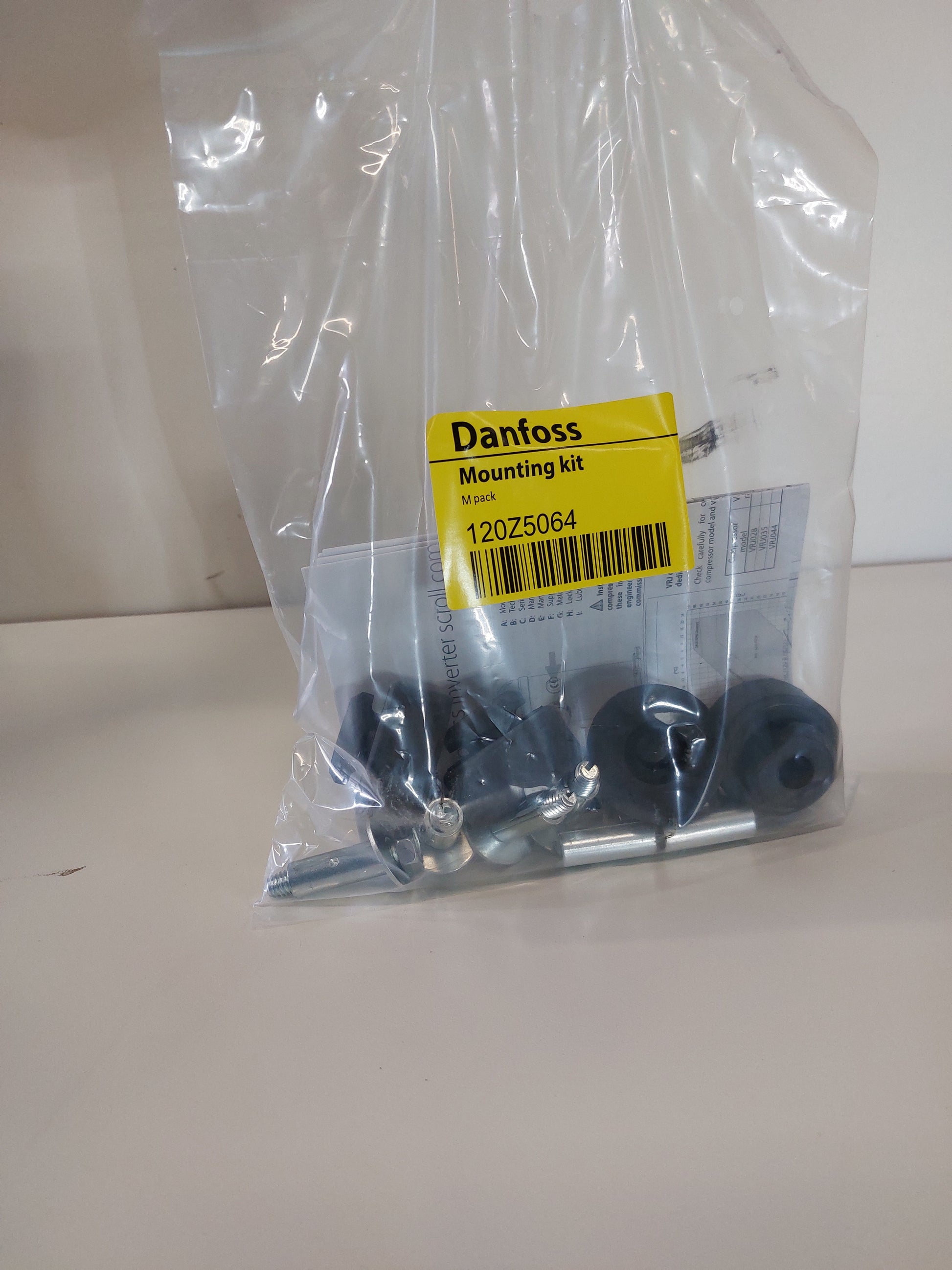

  • Mounting kit with grommets and sleeves
  • Initial oil charge
