Daikin / Sauermann DACA-CP3-1 Mini Condensate Removal Pump Kit

The high performance DACA-CP3-1 has been engineered in partnership with and manufactured to Daikin specifications. It is for use with Daikin models up to 42000 BTUs including single and multi-zone indoor units as well as specific SkyAir units.

• Daikin Indoor Units

• FTXS09LVJU, FTXS12LVJU, FTXS15LVJU, FTXS18LVJU, FTXS24LVJU, FTXS30LVJU, FTXS36LVJU
• FTXN09KVJU, FTXN12KEVJU
• FTXN15KVJU, FTXN18KVJU, FTXN24KVJU
• FTXG09HVJU, FTXG12HVJU, FTXG15HVJU
• CTXS07HVJU, CTXS09HVJU, CTXS12HVJU
• CTXS007LVJU
• FDXS09DVJU, FDXS12DVJU
• FDXS09LVJU, FDXS12LVJU
• CDXS15LVJU, CDXS18LVJU

• SkyAir Indoor Units:

• FTXS30LVJU, FTXS36LVJU
• FHQ18PVJU, FHQ24PVJU, FHQ30PVJU,
• FHQ36MVJU, FHQ42MVJU
• FAQ18PVJU, FAQ24PVJU

• VRV Indoor Units:

• FXHQ12MVJU, FXHQ24MVJU, FXHQ36MVJU
• FXLQ12MVJU, FXLQ18MVJU, FXLQ24MVJU
• FXNQ12MVJU, FXNQ18MVJU, FXNQ24MVJU
• FXAQ07PVJU, FXAQ09PVJU, FXAQ12PVJU, FXAQ18PVJU, FXAQ24PVJU



It is suitable for air-conditioning units up to 3.5 tons. The piston technology is specifically designed for removing condensates from air conditioning systems. The Si-30 is fully reliable, in any kind of environment. Its operating sound level will remain silent whatever the volume of condensates. It also boasts a low noise level (20 dBA) and small size with a low maintenance filter-free detection system.



This mini pump can be used with air conditioners up to 5.6 tons (67 kBTU - 20 kW), wall split systems, consoles, fan coils, ceiling suspended units and ducted units.

• High resistance to pollution created by general environment. Capable of discharging small particles
• Proven reliability
• Silent
  • Quiet in operation: 20 dBA independently tested.
  • The size of the air-conditioning unit and volume of condensates to be removed does not affect the operational sound level of the pump.
  • New mounting bracket specifically designed to reduce vibration transmission to the wall / panel or pipework
• Easy to install
  • Compact design
  • New mounting bracket : allows the pump to be wall mounted or hung from ceilings and pipework
  • Plug-in power cord to make maintenance and replacement hassle free
• Energy saving
  • Improved performance and high flow rate reduce operation time and energy

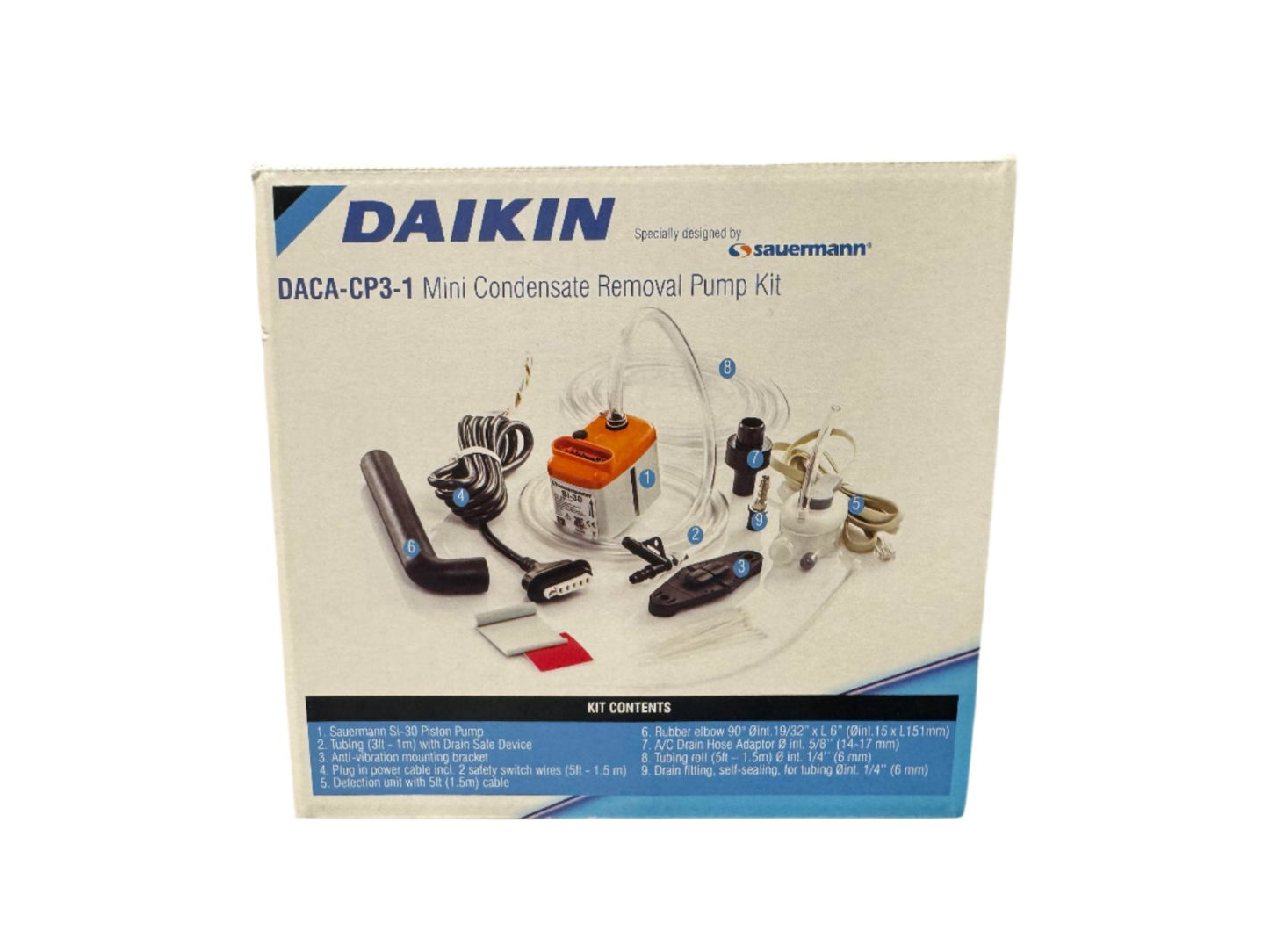

• Kit Includes:
  • Piston pump
  • Anti-vibration mounting bracket
  • Plug in power cable with 2 safety switch wires (5ft - 1,5 m)
  • 6 tie wraps, 1/10" x 4" (2.5 x 100mm)
  • Detection unit SI2958, with (5 ft - 1.5m) cable
  • Detection unit installation kit: rubber elbow 90° Øint. 19/32" x 2"3/8 (Øint. 15 x L 60mm), Vent tube Øint. 5/32" x L 2"15/16 (Øint. 4 x L 75 mm), mounting rail, adhesive
  • TECHNICAL SPECIFICATION
    • Max. flow rate 5.0 gph (19 l/h)
    • Max. suction head 10 ft (3 m)
    • Max. discharge head 33ft (10 m); flow rate= 1gph (4l/h)
    • Max pressure 46 ft (14 m); flow rate = 0 gph (0l/h)
    • Sound level at 1m according to EN ISO 3744 (Measured at LNE lab, pump operating with water, out of application) 20 dBA
    • Sound level in application at 1m: (Measured in Sauermann acoustic lab, pump operating with water) ≤ 27 dBA
    • Mains supply 120V ~ 60 Hz - 14 W (SI3000SIUS11) 230 V ~ 50/60 Hz - 14 W (SI3000SIUS23)
    • Insulation class (double insulation)
    • Detection levels On=5/8” Off=7/16’’ Alarm=3/4’’ (ON: 16mm, OFF: 11mm, AL: 19mm)
    • Safety switch NC 8A resistive - 250 V
    • Thermal protection (overheating) 194°F (90°C) auto-reset
    • Intermittent operation cycle 30%: 3s ON – 7s OFF
    • Protection IP20
    • Safety standards UL/CSA certified by Intertek
    • RoHS directive Compliant
    • DEEE directive Compliant

    Dimensions:
    • Pump Unit: 2 5/8"L x 1 3/4" W x 2 3/8"H
    • Detection Unit: 2 1/4"L x 1 1/2"W x 1` 1/2"H
