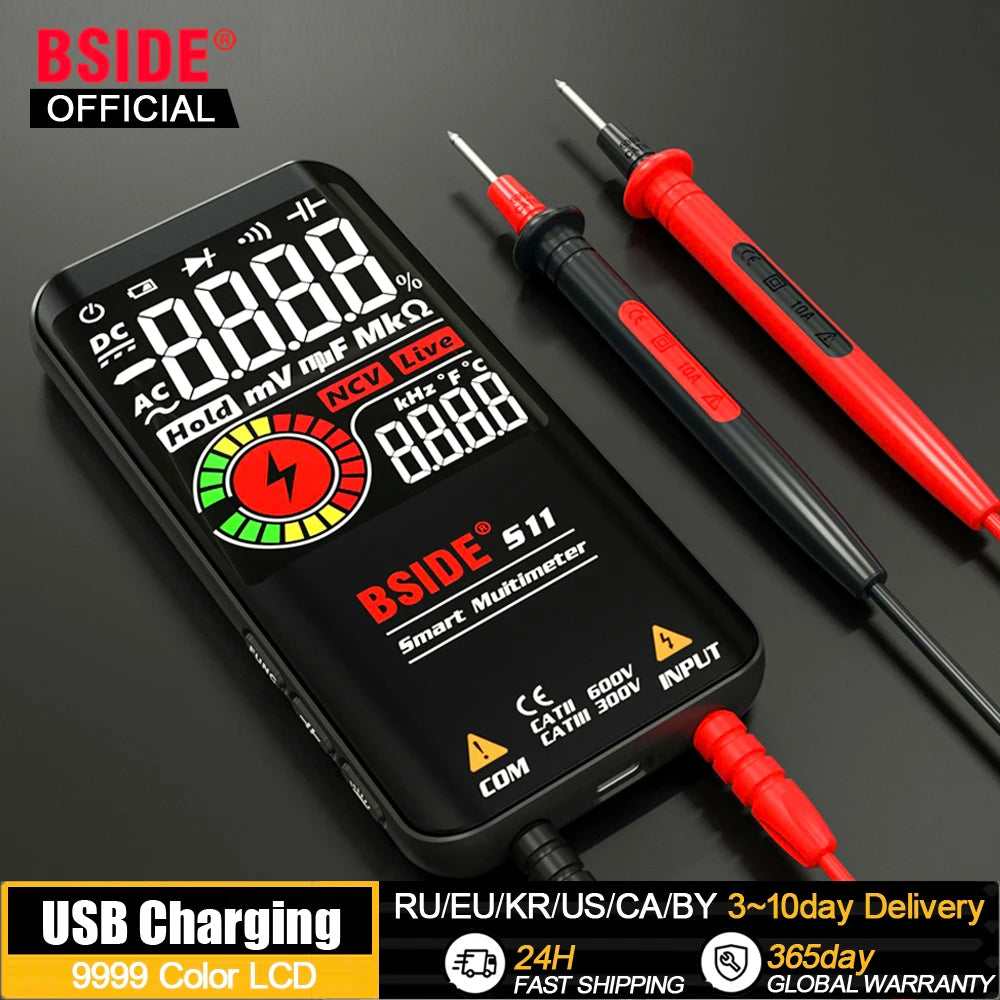

BSIDE Profesional Digital Multimeter Smart 9999 EMF Multitester DC AC Voltage Capacitor Ohm Diode Live Electric Tester USB charg
Description
SPECIFICATIONS
Brand Name: BSIDE
BSIDE Model: S11
Origin: Mainland China
Hign-concerned Chemical: None
DIY Supplies: ELECTRICAL
AC Voltage: 0V ~ 620V
Display Type: Digital display
DC Voltage: 0V ~ 620V
AC Current: N/A
Measuring Resistance Range: 60M Ohm
Certification: CE
Certification: FCC
Certification: RoHS
DC Current: N/A
Measuring Capacitance Range: 99.99mF
Operating Mode: Automatic/Manual
Model Number: BSIDE S10 A10 S11 S20 Digital Multimeter
Is Smart Device: YES
Measuring Inductance Range: N/A
Dimensions: 147*85*4.2mm
Operating Temperature: 0 - 40 ℃
BSIDE S10/A10/S11/S20 Profesional Digital Multimeter USB charging Smart 9999 EMF Multitester DC AC Voltage Capacitor Ohm Diode Live test Electric Tester.
Order Notice:
The A10 product is currently the most cost-effective smart multimeter with a built-in rechargeable lithium battery on the market.
The test parameters of S10/S11 are exactly the same, the difference is: S10 uses 1.5V AAA battery power supply; S11 built-in 800mA rechargeable lithium battery.

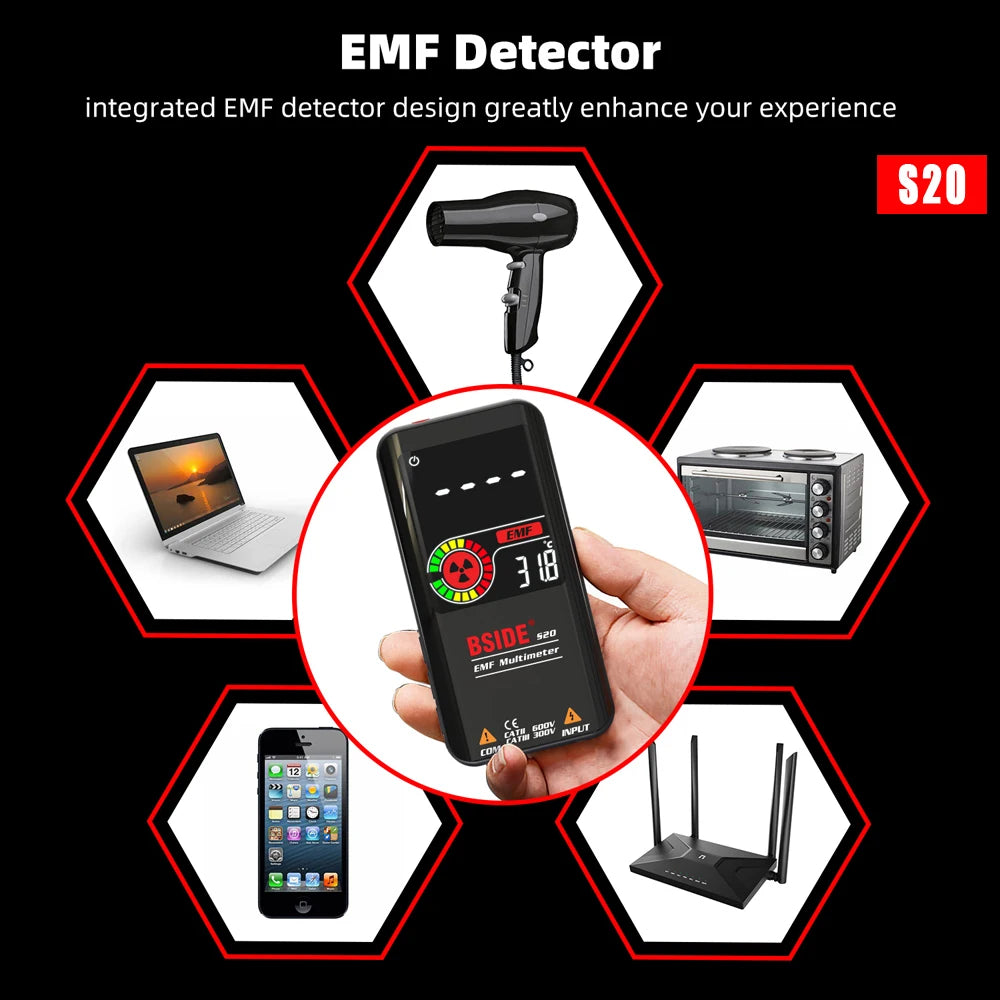

The S20 product is the highest version of the series, adding EMF detection function.

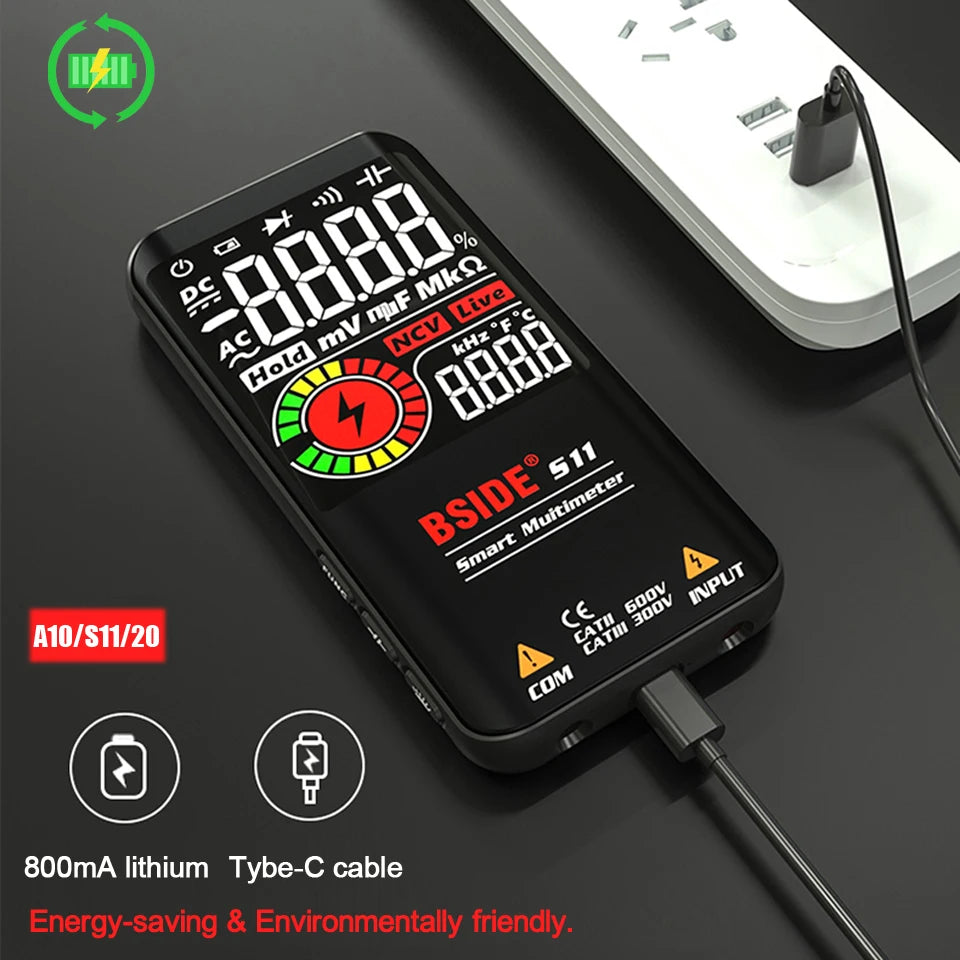

USB charging design - energy saving and environmental protection.
Fully functional - wide range of application scenarios.

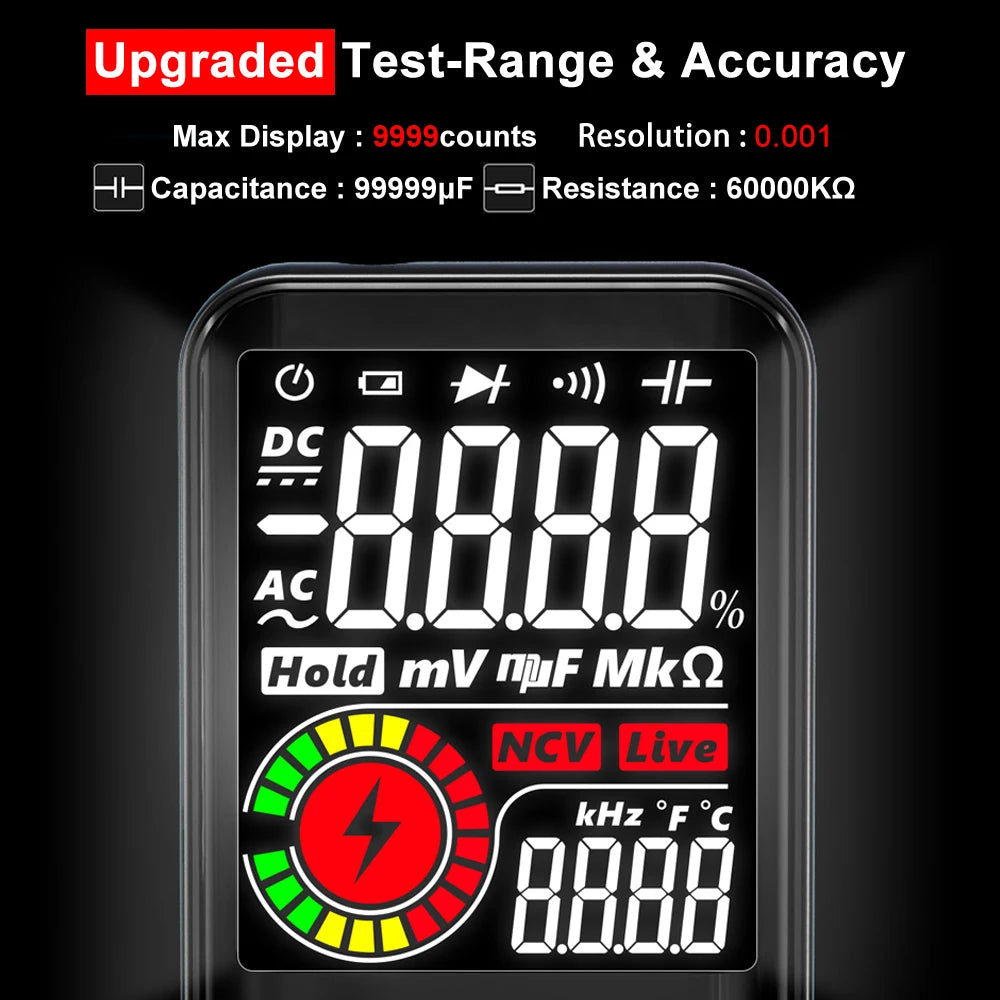

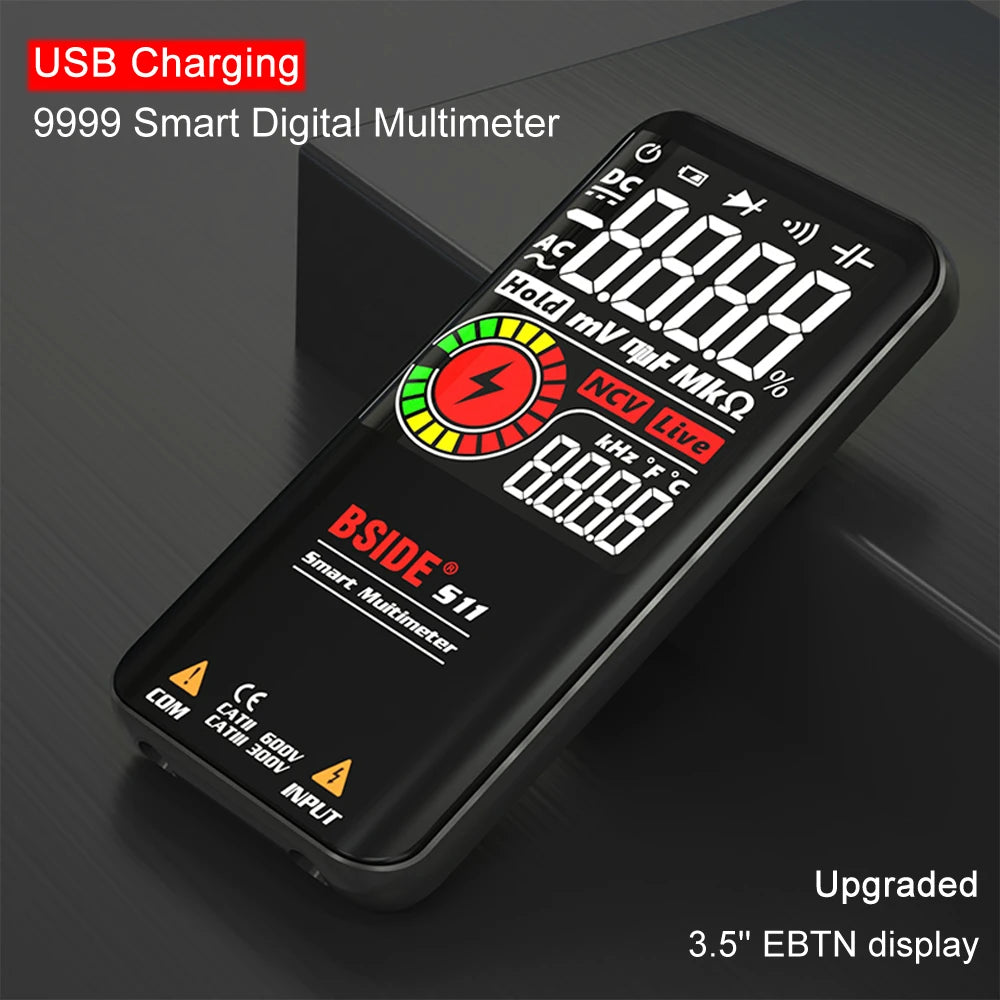

Upgraded version - 3.5'' large screen high-definition EBTN display
No visual limitations/Solve industry pain points.
Specifications:
Display: 9999 counts.
Screen: 3.5 inch.
DC Voltage: 0-620V ±(0.5%+3); Resolution: 0.001V.
AC Voltage: 0-620V ±(0.5%+5); Resolution: 0.001V.
Resistance:1Ω-999.9Ω ±(2.0%+5); 1kΩ-60MΩ ±(1.0%+3); Resolution: 0.11Ω.
Capacitance: 1nF-999.9nF ±(6.0%+5); 1uF-99.99mF ±(3.0%+3); Resolution: 0.001nF.
Frequency:
1Hz-1000Hz ±(1.0%+5) (ACV:2V-10V); Resolution: 0.001Hz.
1KHz-60KHz ±(1.0%+5) (ACV:10V-620V); Resolution: 0.001Hz.
Duty Cycle: 0.1%-99.9% ±(3.0%+5) (ACV:2V-620V); Resolution: 0.1%.
Diode: Auto identify diode if less than 3.0V.
V-Alert(non-contact voltage detection): beep alarm sounds.
Live Check: alarm beep sounds, LCD screen display stripe.
Continuity: If the resistance is less than 30Ω, the beeper sounds.
S10 Power: 1.5V (AAA) x 2.
S11 Power: Built-in rechargeable lithium battery.
Package Size: 147*85*42mm.
Package Weight: 180g

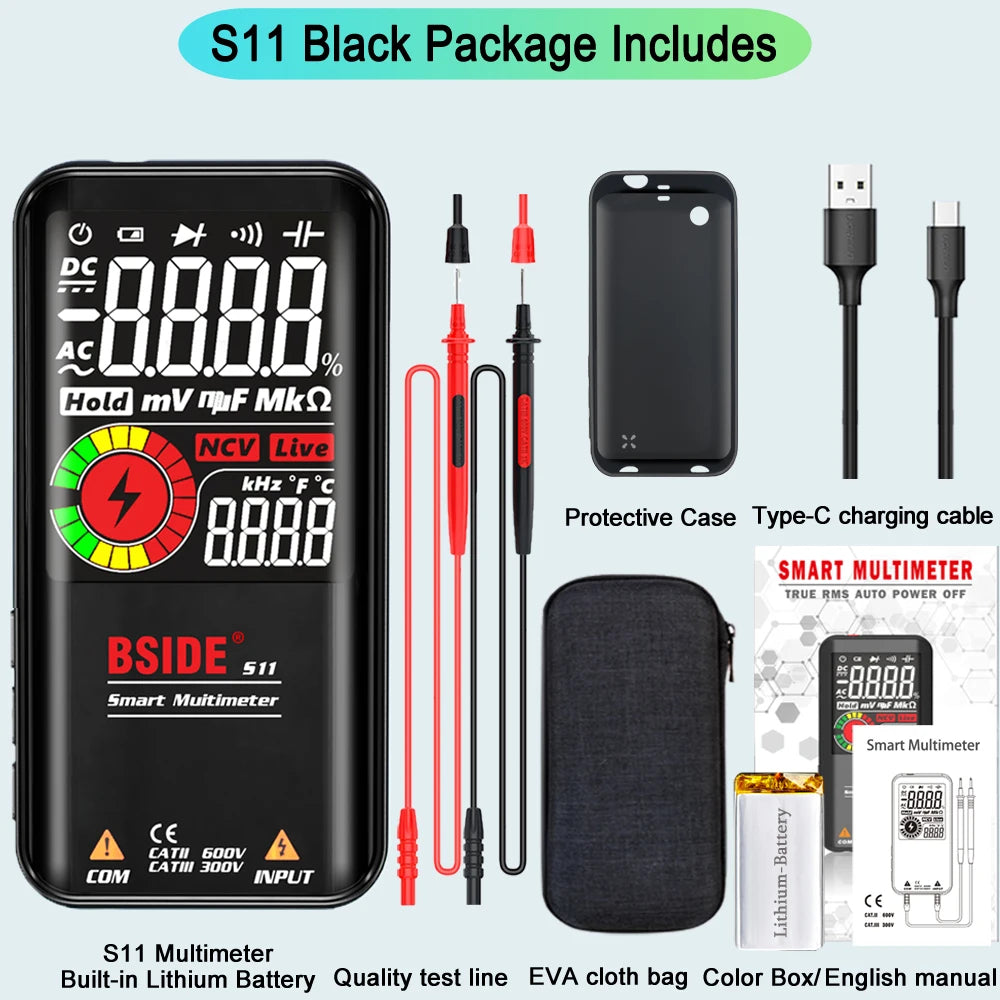

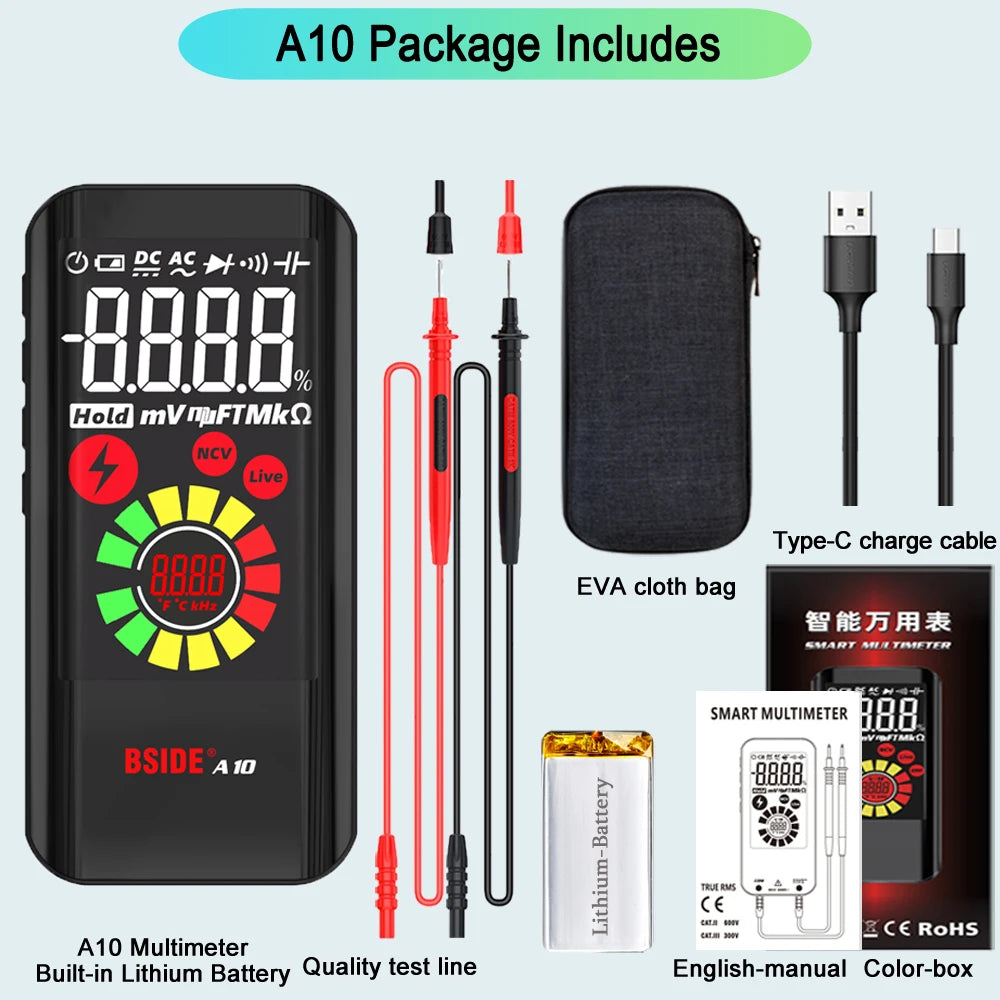

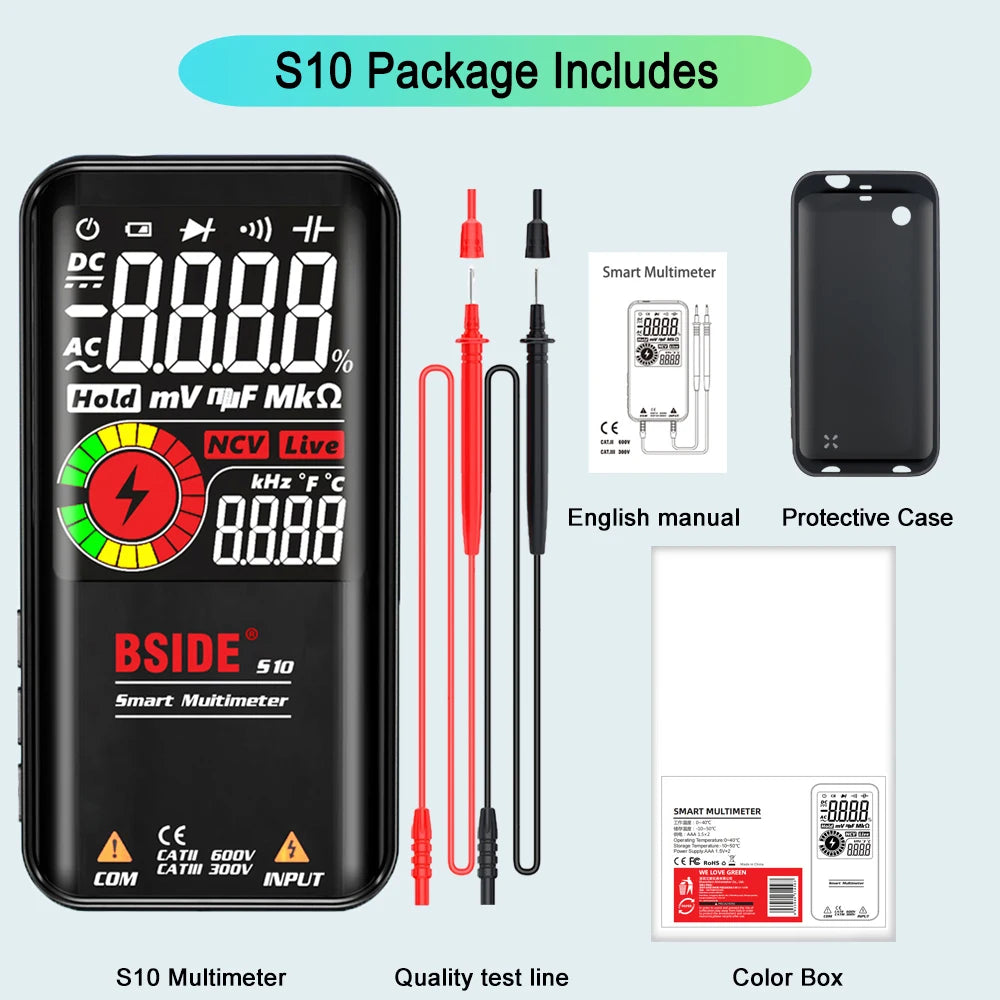

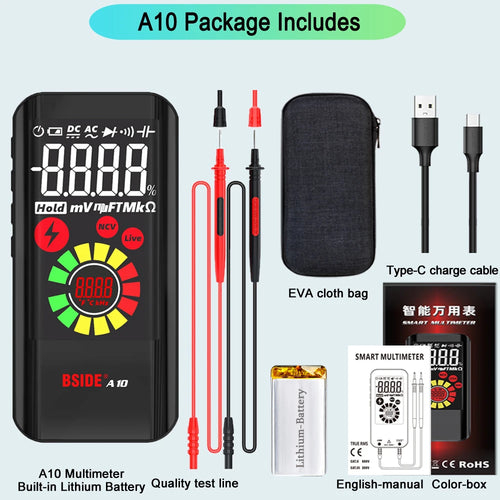

Package Includes:
1 * Multimeter. 1 * Test Lead. 1 * English user Manual. 1 * Packing Box.

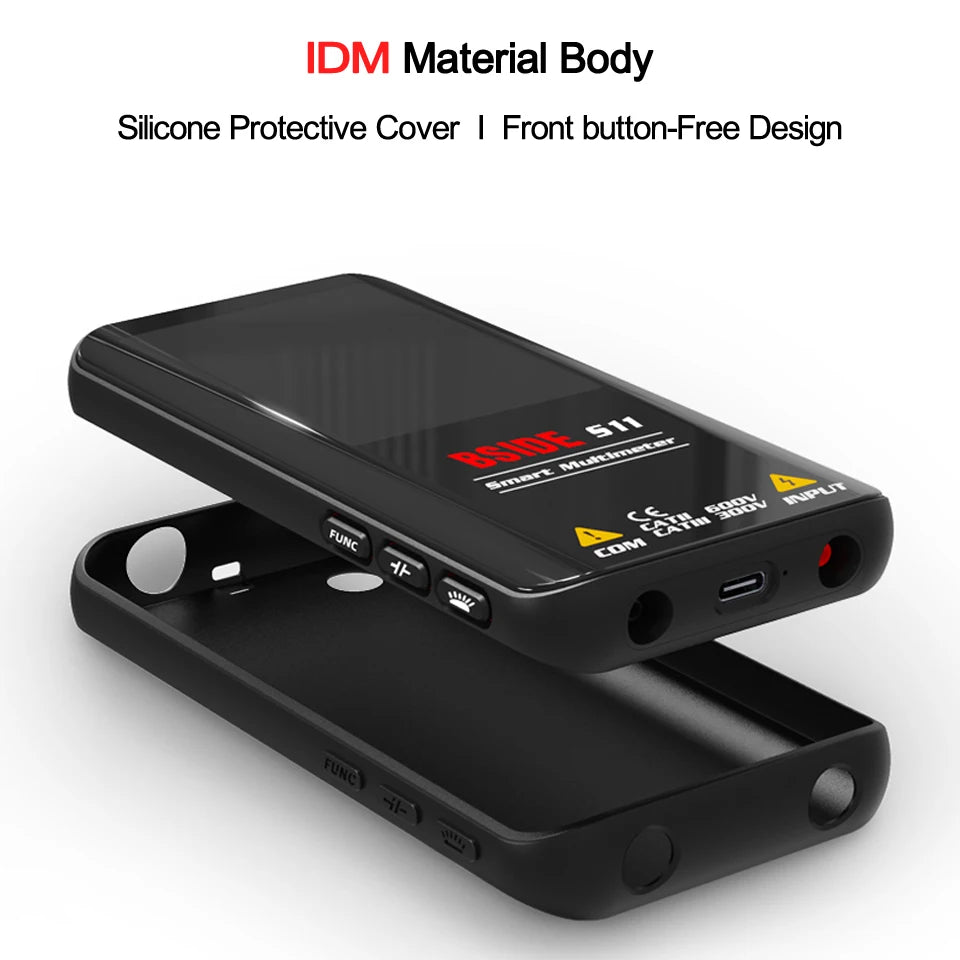

1 * Protective shell.（S11/S20） 1 * USB charging cable.（A10/S11/S20）
1 * EVA portable cloth bag.（A10/S11/S20）
