ANENG ST180 Digital Clamp Multimeter Meter AC Current 4000 Counts Ammeter Voltage Tester Car Amp Hz Capacitance NCV Ohm Tool

$15.98 $16.62
Ships in 1-2 days
★★★★☆ ( reviews)
In Stock

Description

SPECIFICATIONS

Brand Name: ANENG

Hign-concerned Chemical: none

DIY Supplies: ELECTRICAL

Origin: Mainland China

Measuring Inductance Range: 10Hz~400kHz/400kHz~4MHz

Weight: 124g

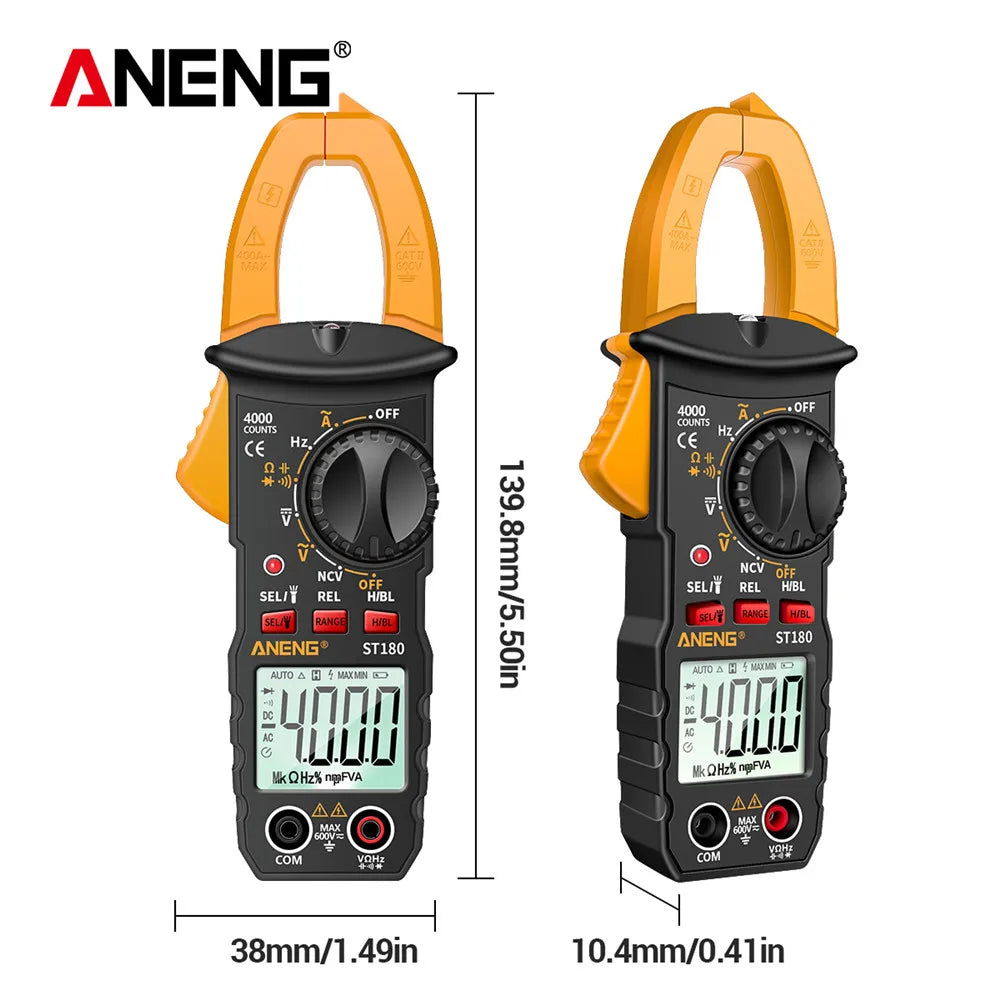

Dimensions: 139.8*10.4*38mm

Operating Temperature: 0-40 temperature

Measuring Current Range: 40A/400A

Display Type: Digital Only

Measuring Voltage Range: 400mV/4V/40V/400V/600V

Measuring Resistance Range: 400/4k/40k/400k/4M/40M

Certification: none

Measuring Capacitance Range: 1nF~4F/4F~400uF/4mF

Model Number: ST180 Digital Clamp Meter

Choice: yes

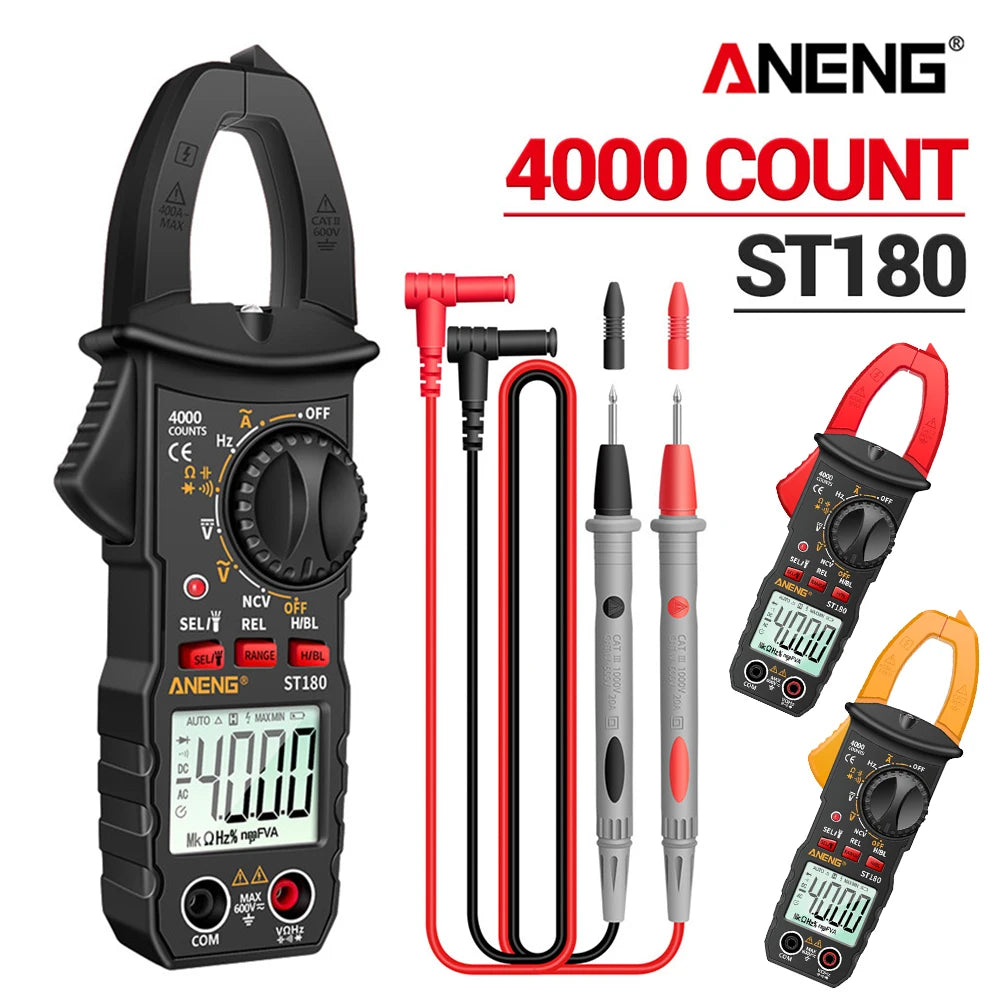

ANENG ST180
4000 Counts Digital AC Current Clamp Multimeter

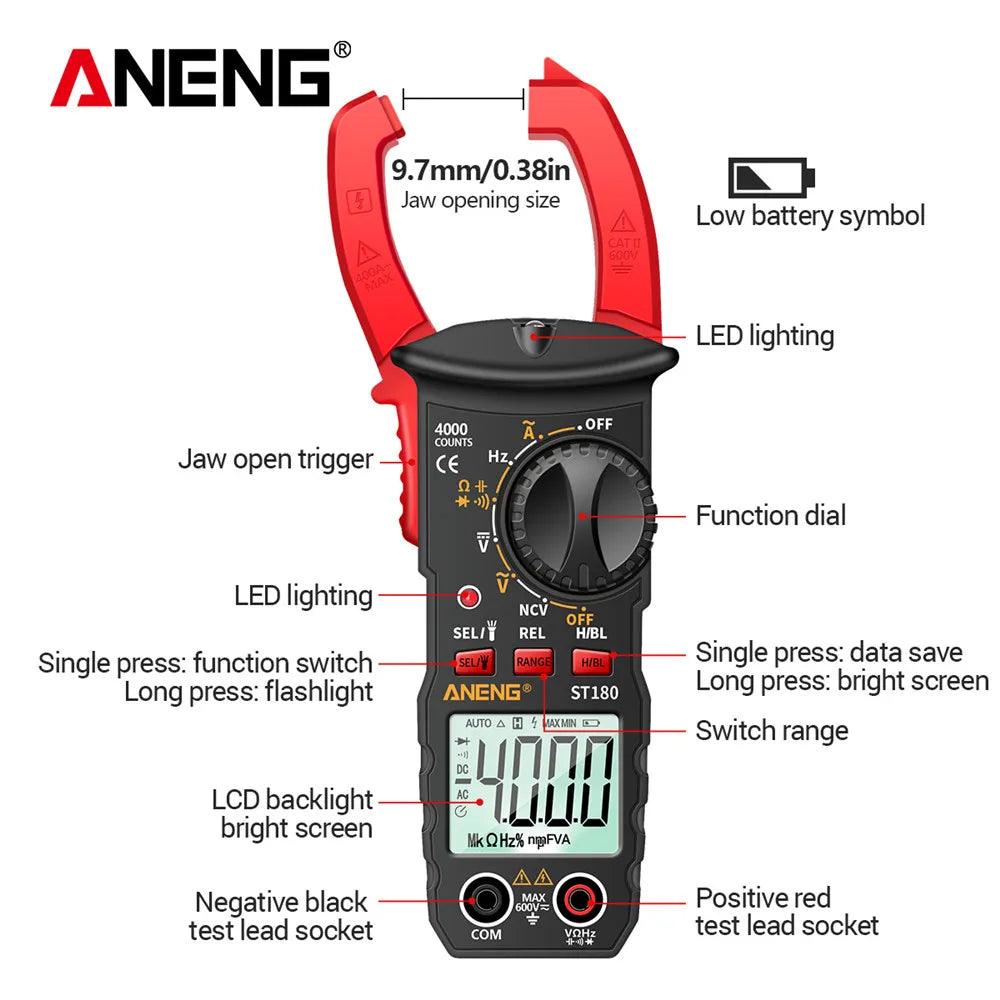

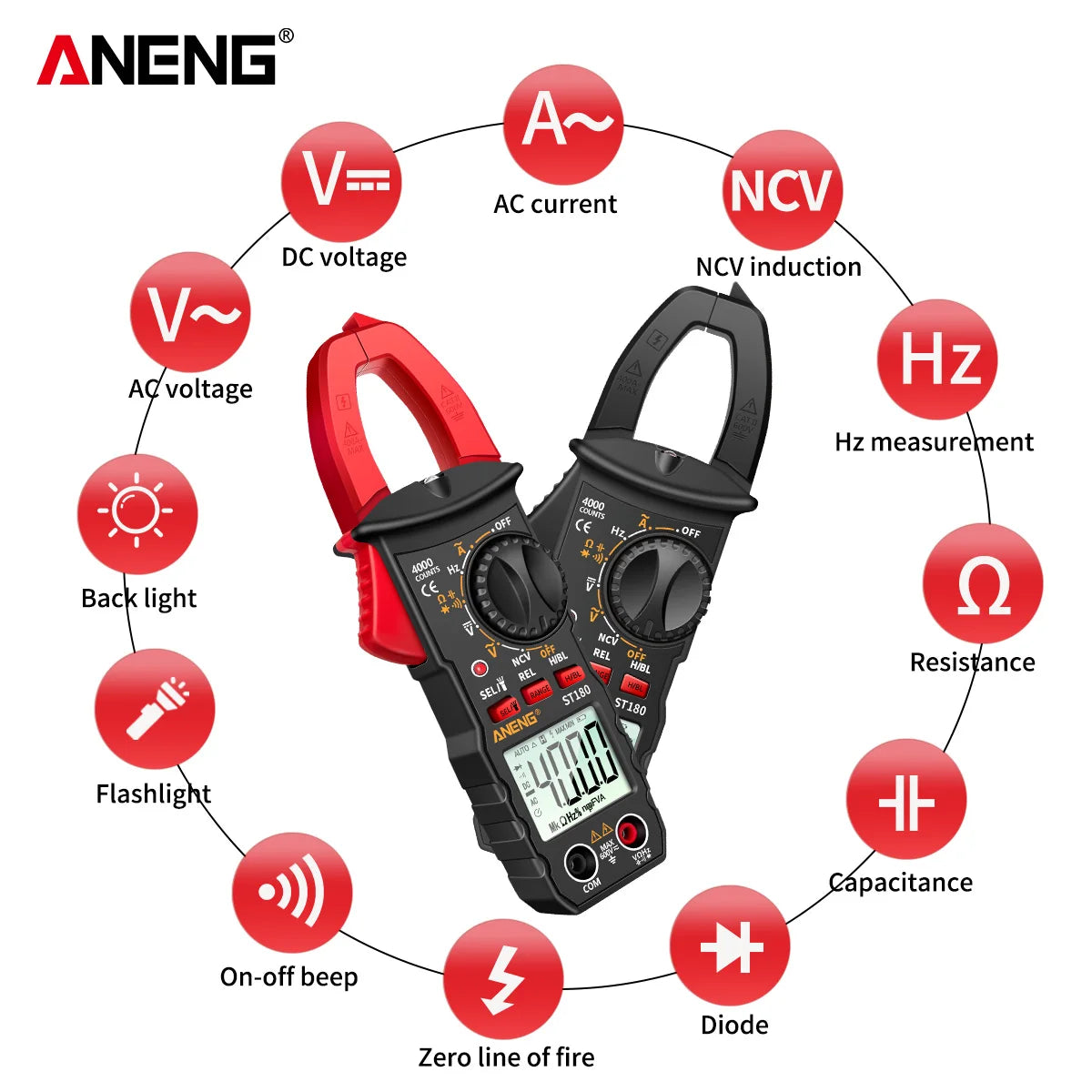

Feature:
This Mini-size digital instrument performs AC/DC voltage, AC Current,
Resistance, Audible Continuity, Diode, Temperature measurements
and Non-Contact ACV Detect (NCV) as well as Capacitance, Hz etc.
It is an auto ranging DMM with AC current clamp meter function.


Specifications:

Model

ST180

Display

4000 counts


Range

Accuracy

AC voltage

4V/40V/400V/600V

±(1.5%+3)

DC voltage

400mV

±(1.5%+5)


4V/40V/400V/600V

±(1.0%+3)

Resistance

400/4k/40k/400k/4M  omh

±(1.2%+3)


40M  omh

±(1.5%+5)

AC current

40A/400A

±(2.5%+3)

Frequency

10Hz~400kHz

±(1.0%+5)


400kHz~4MHz

±(2.0%+5)

Capacitance

1nF~4uF

±(2.5%+10)


4uF~400uF

±(4.0%+20)


4mF

±(5.0%+30)

Temperature

0~400℃/32~752℉

±(2.0%  + 1℃)


400~750℃/752~1382℉

±(2.5%  +1 ℃)

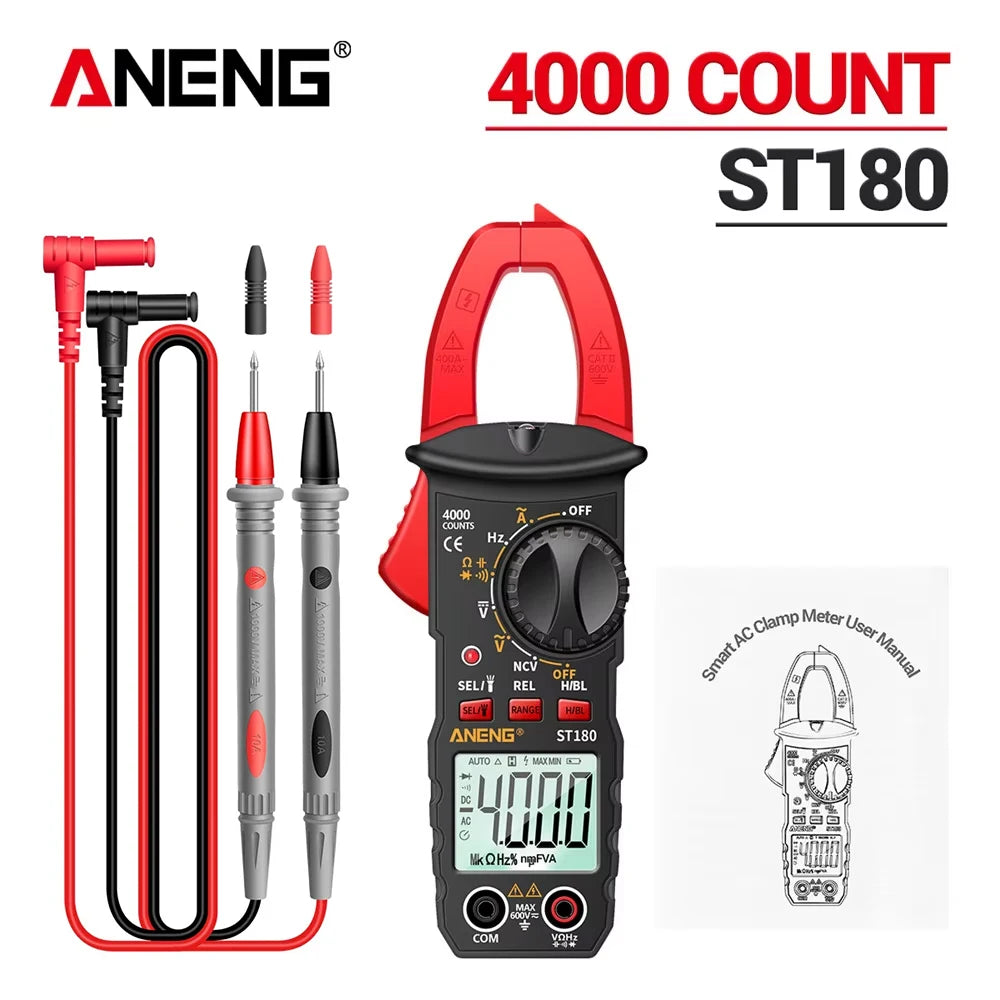

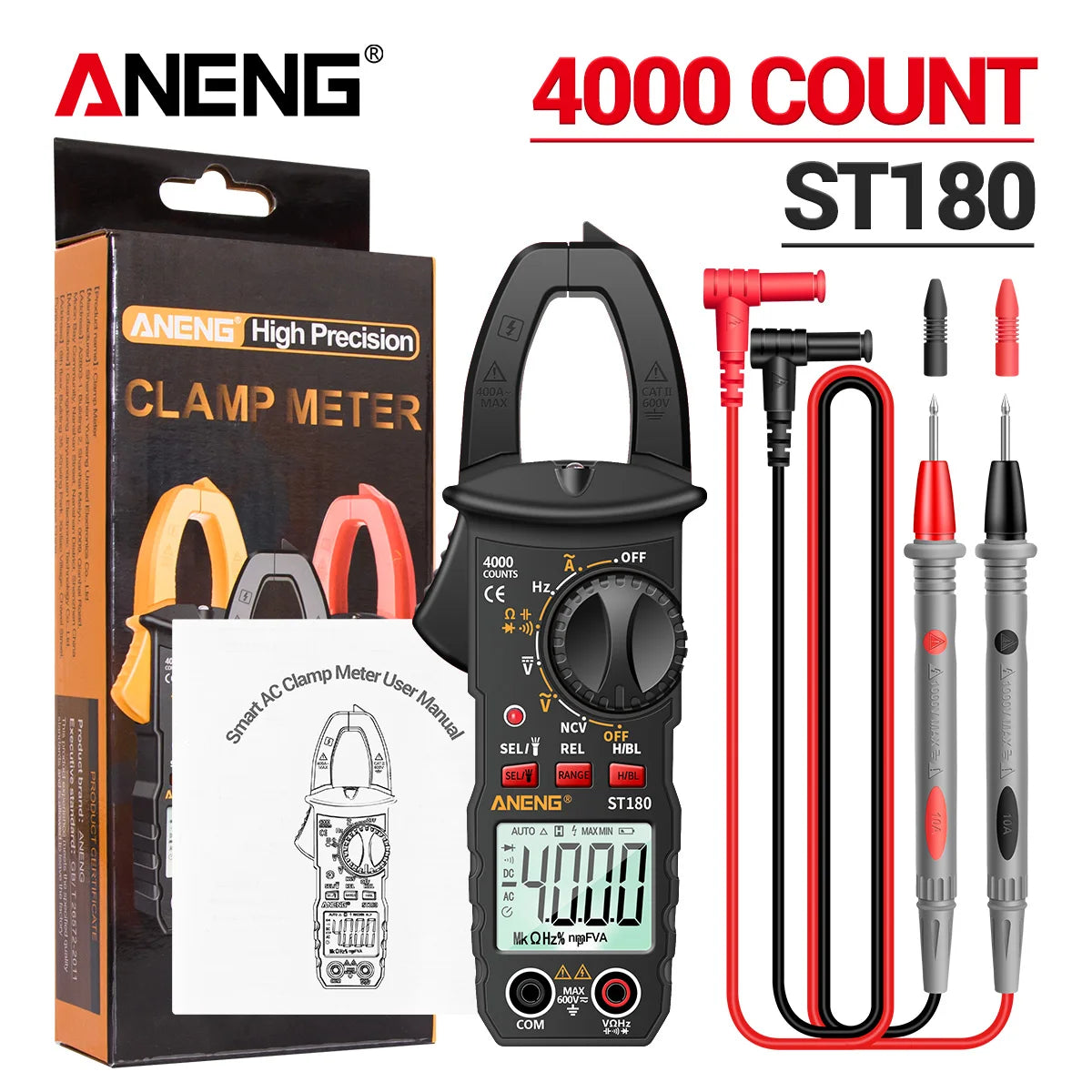

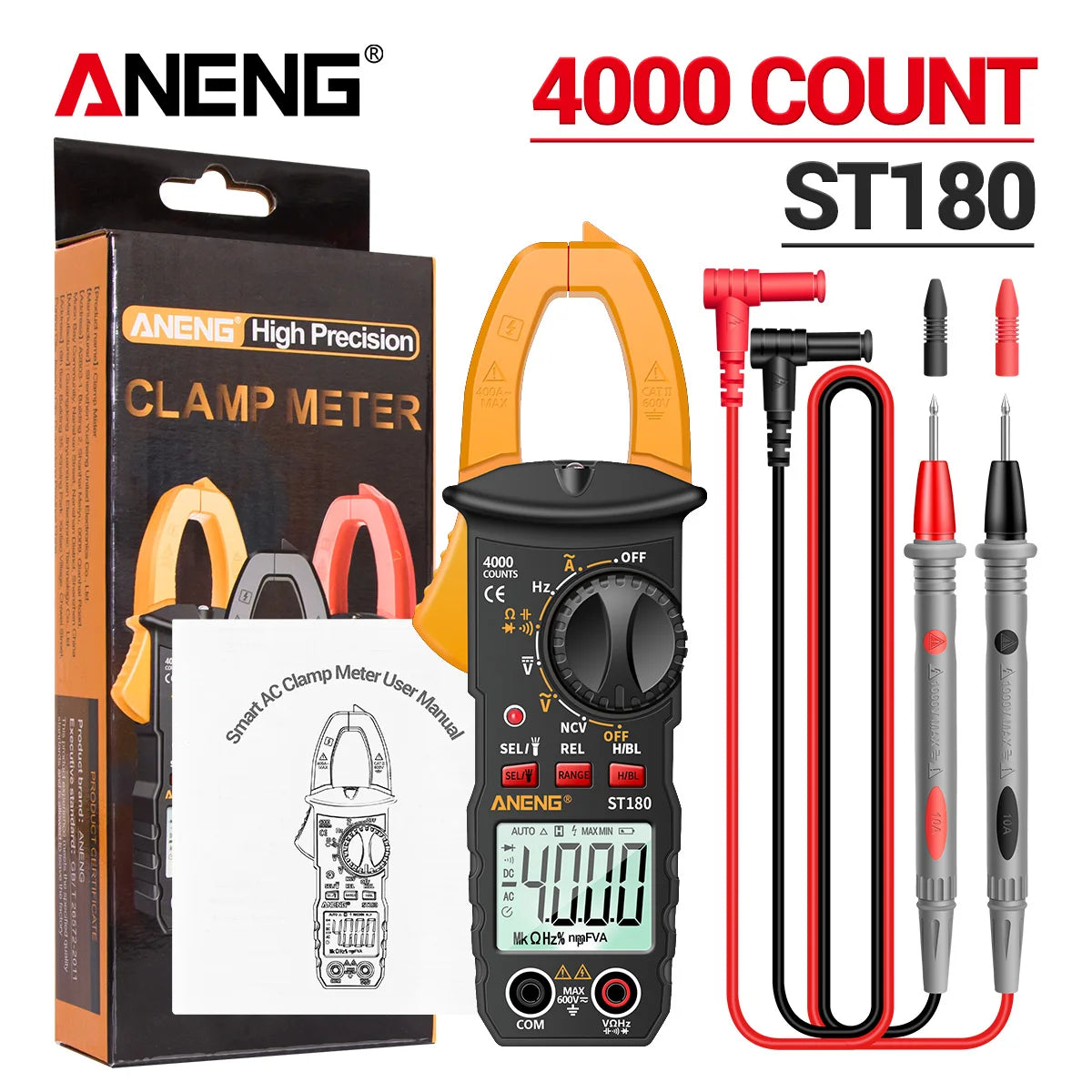

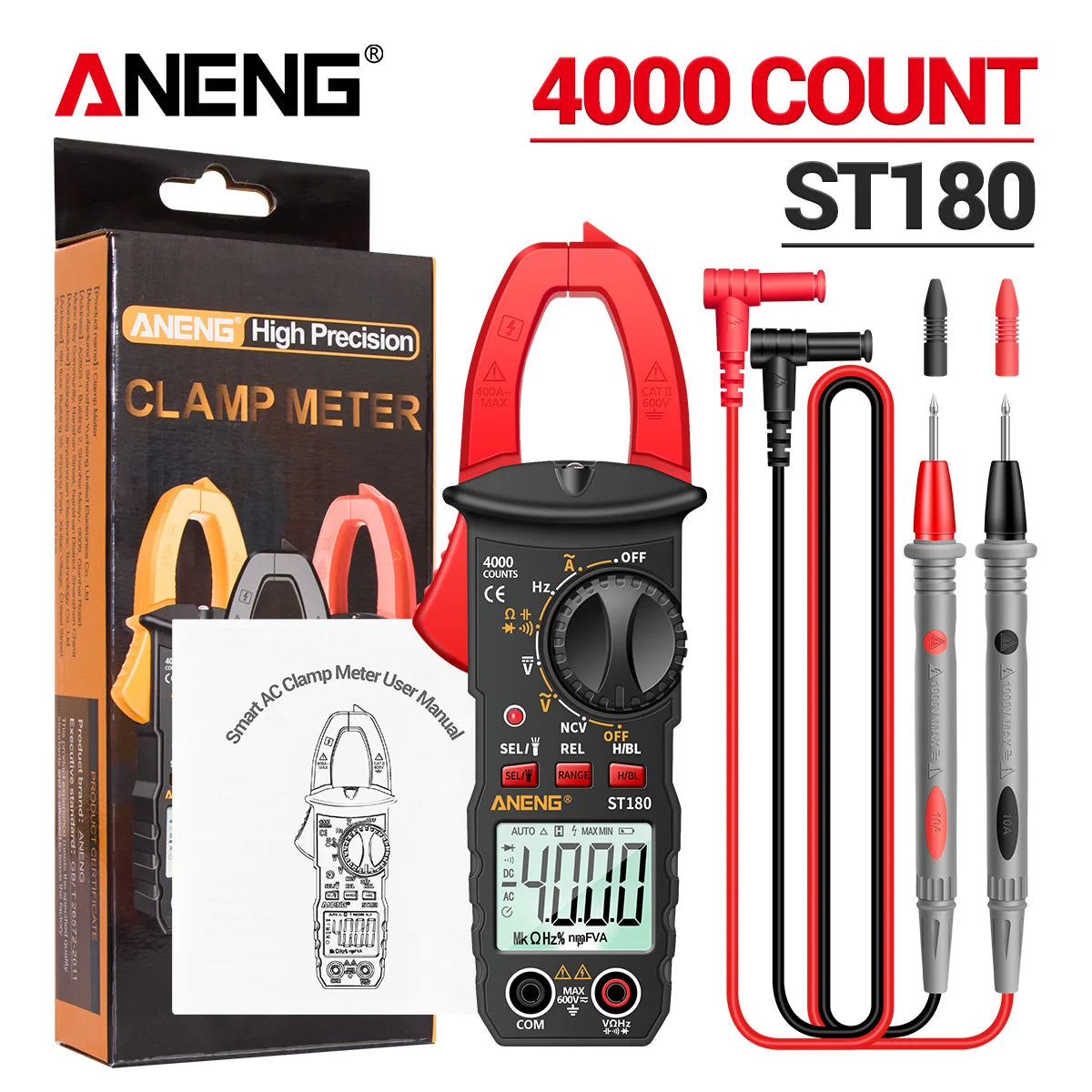

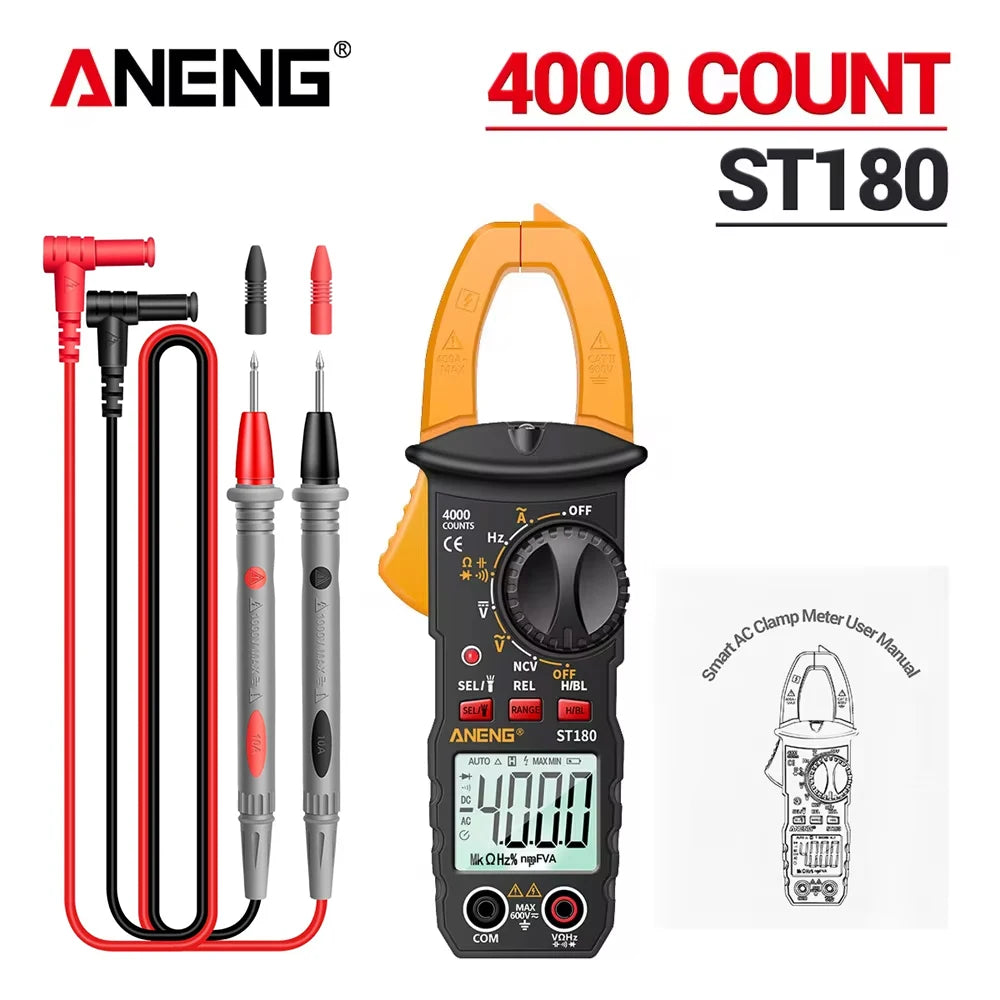

Package List:
1 * ANENG ST180 Clamp Meter (without battery)

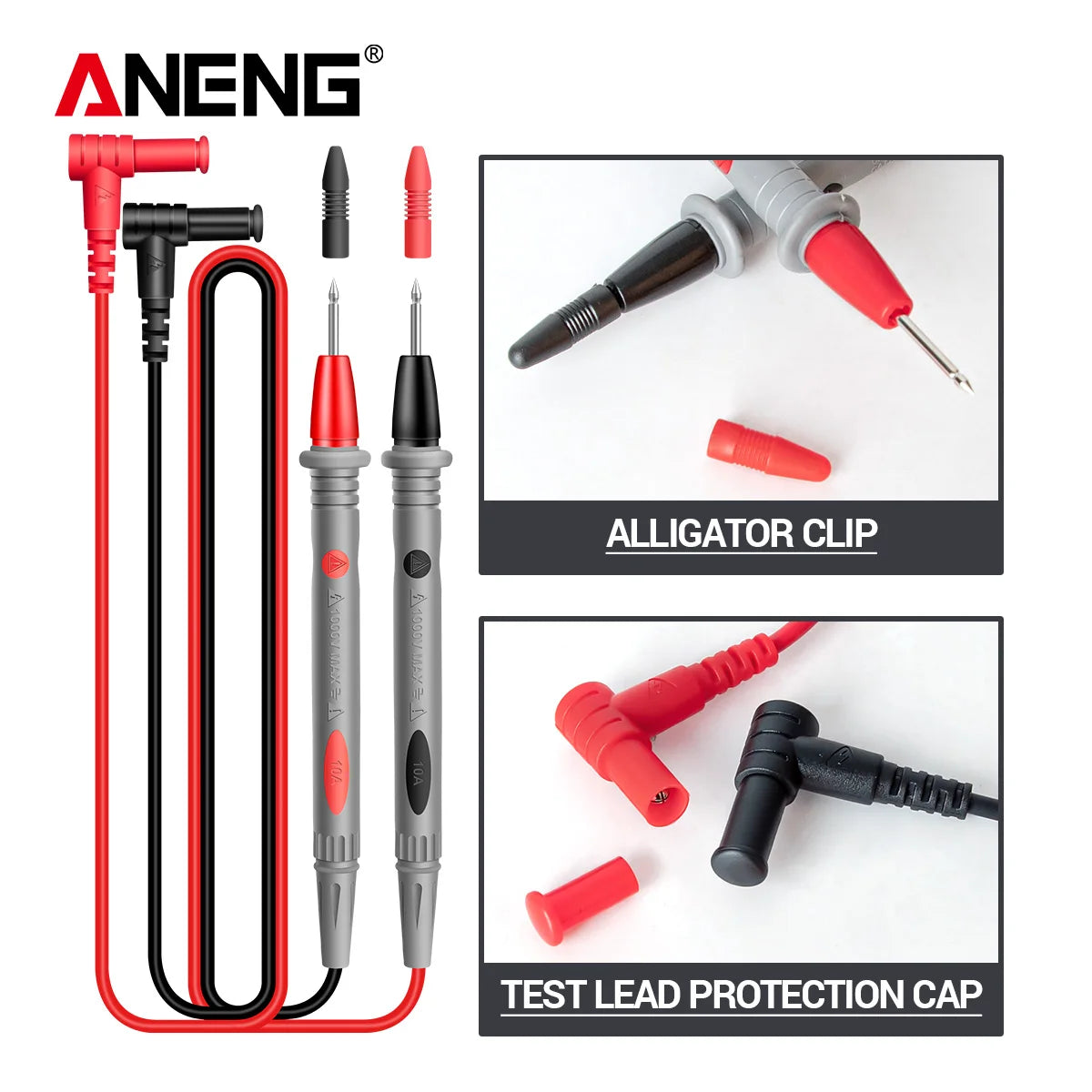

2 * Test Probes
1 * User Manual
1 * Outer  Packing Box(According to the choice)
